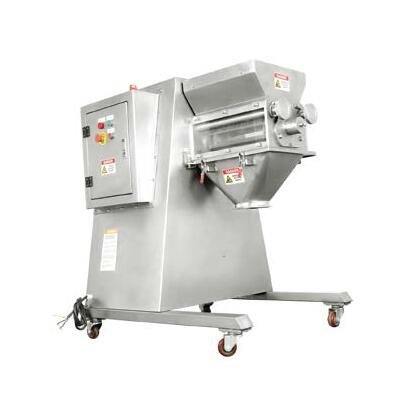

The PerMix POG Oscillating Grinder is a high-performance machine designed for processing wet and dry powders into fine granules with precise particle sizes. Featuring a compact design with no bearing/sealing parts in contact areas, it is ideal for industries like food and pharma. With a motor power of 4 kW and a speed of 55 rpm, this grinder offers optimal granulation efficiency. The rotating cylinder, adjustable mesh gap, and transparent access doors ensure easy operation, inspection, and cleaning. Suitable for bio, chemical, food, health, beauty, nutraceutical, and pharmaceutical applications.
Product Specifications
Applications Applications
Bio | Chemical | Food | Health and Beauty | Nutraceutical | Pharmaceutical
How It Works How It Works

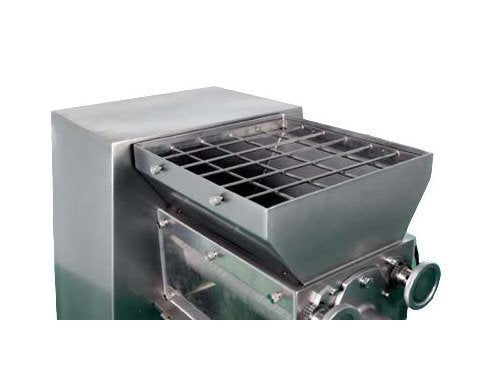

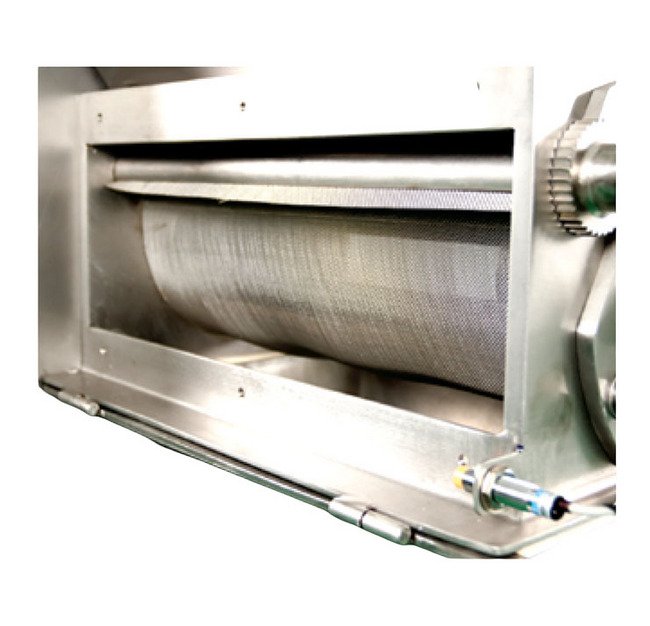

The grinder comes with a rotating part (cylinder) that is made by 6 pieces of bars with triangle profile, the lower half of which is wrapped by a stainless steel wire screening mesh (or a perforated metal plate mesh).Products are fed into the grinder from the top, going into the gap between the bar edges and the mesh, and then the rotating part is driven to rotate in an oscillating way, from left to right and then from right to left, pushing the products through the holes of the mesh and thus granulating them.The gap between the bar edges and the mesh can be adjusted by stretching the mesh by two handles with stoppers. Products are collected by the bottom hopper and discharged from its outlet. Two transparent access doors are mounted for easy inspection and cleaning of the working chamber.A special gearbox is applied to provide the function of driving the main shaft rotate in the oscillating way. This gearbox is driven by a motor with belt transmission. The gearbox and the motor are located in a stainless steel housing. The grinder comes with 4 caster wheels for easy moving.
Note Note
Capacity is product dependent.All specifications and illustrations are as accurate as is reasonably possible, but they are not binding.PerMix reserves the right to modify the design without notice.
Specifications Capacity
60 to 300 kg/h
Specifications Diameter Of Rotating Cylinder
160 mm
Specifications Dimension
1000 x 800 x 1300 mm
Specifications Motor Power
4 kW
Specifications Speed Of Rotating Cylinder
55 rpm
Specifications Weight
280 kg
