PerMix PTP 4000L Paddle Mixer

Name: PerMix PTP 4000L Paddle Mixer
Brand: PerMix North America
SKU: PTP-5ef4d0
Price: 10999.99 USD
Availability: OutOfStock

SKU:PTP-5ef4d0

Experience superior mixing efficiency with the PerMix PTP 4000L Paddle Mixer. Ideal for viscous materials, this mixer offers durability and performance for various industries.

$10,999.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

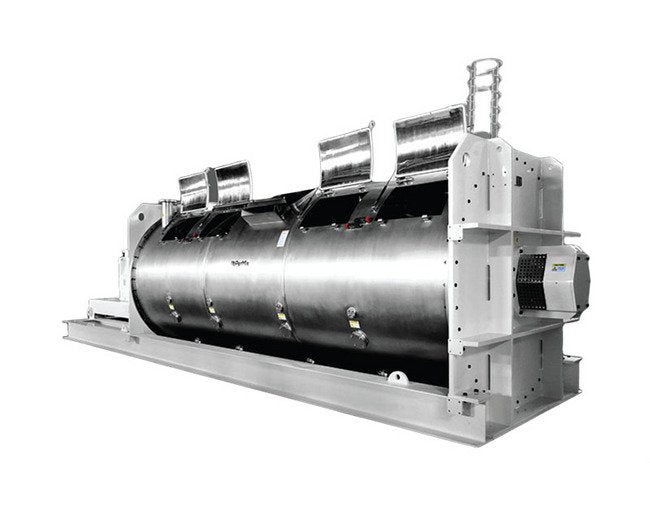

The PerMix PTP 4000 Liter Total Capacity Paddle Mixer offers efficient mixing with lower power consumption than traditional Plow Mixers. Perfect for handling viscous materials like slurries, the paddle element ensures superior performance and durability. Optional features include continuous operation, heating/cooling jacket, various mixing elements, and customizable construction materials. Ideal for industries like Bio, Chemical, Food, and Pharmaceutical, this mixer is versatile and reliable for a wide range of applications.

Product Specifications

Additional Information Additional Information

Compared with the conventional Ribbon Blenders, Paddle Mixers are superior because they are able to mix the material in a more aggressive way while keeping the similar power consumption, due to the fact that the uniquely designed paddles are more pitched than ribbons in a Ribbon Blender and move more materials in a single turn.The main difference between our PTP Paddle Mixer and PTS Plow Mixer is the mixing element: PTS Mixer uses the plough-shaped element, while PTP Mixer uses the paddle element. PerMix PTP Paddle Mixers can be used wherever the Plow Mixers are used, including but not limited to compounding, fine mixing, dispersing, suspending, emulsifying, deaerating, tempering, accelerating chemical or physical reactions, granulating, breaking down agglomerates, etc.Both Paddle and Plow are 'aggressive mixers' that are well qualified for high mixture ratio processes up to 1:1,000,000, which means the single sample of 1 ppm of a batch volume can still have the right mixture of ingredients.

Applications Applications

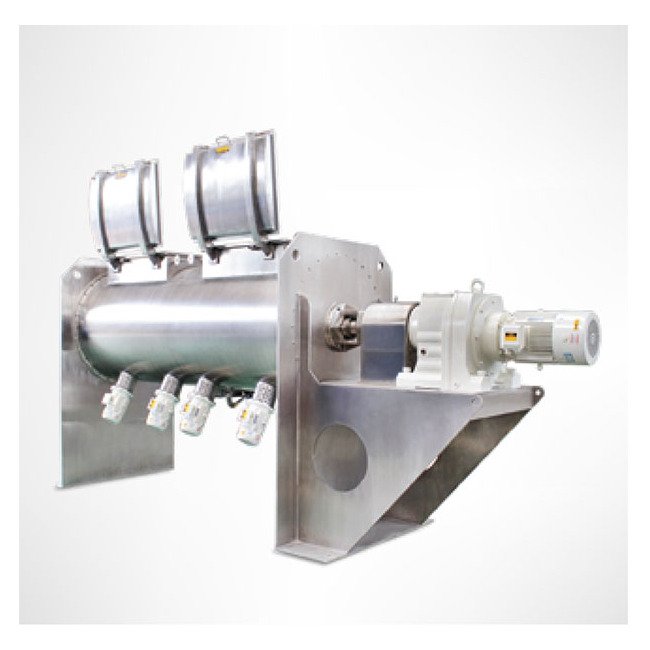

Design With Multi Choppers Design With Multi Choppers

The installation of PerMix Multi-chopper in the basic PTP powder mixer enables the breaking down of agglomerates during the mixing process.Together with the mixing element, the PerMix Multi-chopper removes lumps in the initial product, chops pasty adhesives and hinders the formation of agglomeration during the moisturizing of powdered substances. The PerMix Multi-chopper is operated independently by its own motor.

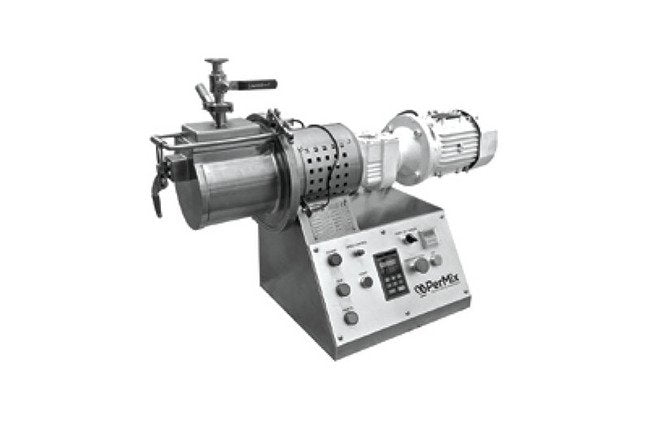

Lab And Pilot Models Lab And Pilot Models

PerMix designs the full range of paddle mixers, including the lab size (5L full) & pilot size (up to 45L full) models for Research & Development purpose. The small size machine is very helpful for customers when the ingredients for R&D are expensive, thus helping our customer to save their limited budget at the first stage. With the good performance of the lab & pilot mixer, it is easy to scale up for a medium size or even bigger one.

Note Note

All specifications and illustrations are as accurate as is reasonably possible, but they are not binding.PerMix reserves the right to modify the design without notice.

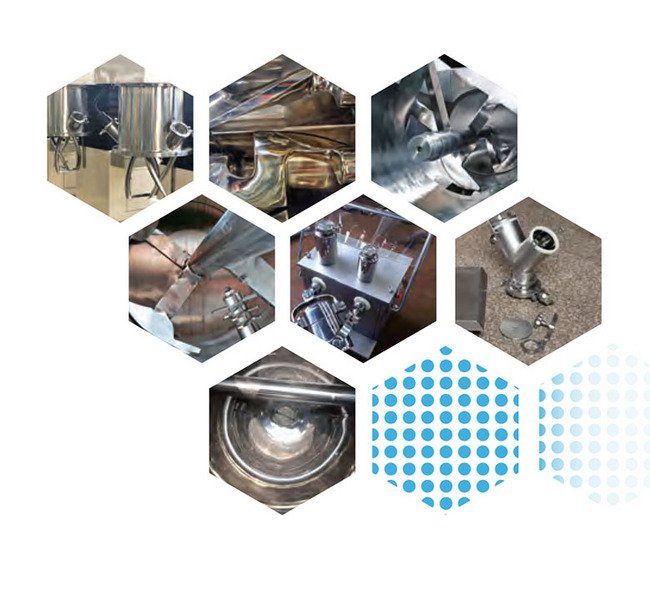

Optional Features Access Door

Access doors can be designed for easy cleaning, inspection & maintenance.

Optional Features Construction Material

We are able to offer mixers with contact part to be built by Carbon steel, SS304, SS316/316L, Titanium, Duplex stainless steel, Hastelloy, etc. For abrasive materials we offer hardened steel as the contact part, or the mixing elements to be coated with materials such as Tungsten Carbide or equivalent. Also we produce mixers all by stainless steel in order to meet the high hygienic requirement.

Optional Features Continuous Operation

PerMix supplies mixers for continuous work when a large capacity per hour is needed for the same material. Continuous paddle mixers differ from batch paddle mixers in that the mass flow of the product is from the inlet of the container to the discharge at the opposite end.

Optional Features Drive System

Drive system by geared motor, cycloidal reducer, worm reducer, belt or chain transmission, etc.

Optional Features Extended Machine Bases

Discharge clearance of PerMix mixers are available according to customer's requirement, with extended machine bases, tubular frames, platform, etc.

Optional Features Feeding And Discharging

A variety of feeding & discharging methods can be selected by the customers. Discharging port can be by manual or pneumatic operation.

Optional Features Heatingcooling Jacket

Jacketed trough for heating/cooling operation by steam, thermal oil, or water. ASME/PED certificate can be optional for high pressure operation.

Optional Features Spray Nozzle

Liquid can be added into the powder by spray nozzles on a pipe which is installed on the top of the mixing trough. The necessary pump and tank can also be provided by PerMix.

Optional Features Various Types Of Mixing Element

PerMix provides mainly two types of mixing elements: plough (for PTS Mixer) and paddle (for PTP Mixer). Both have their advantages: the plough-shaped element shortens the mixing time, and can easily penetrate through the dense and thick powder or paste materials, while the paddle element requires less power consumption and can deal with viscous slurry materials.

Specifications Height

2600 mm

Specifications Height H1

800 mm

Specifications Length

4200 mm

Specifications Length L1

3000 mm

Specifications Power

30 kW

Specifications Speed

17 rpm

Specifications Total Capacity

4000 L

Specifications Width

1550 mm

Specifications Working Capacity

2800 L

Vacuum Mixer Dryer Vacuum Mixer Dryer

With some special modification, the PerMix PTP series Paddle Mixer can be used as a multi-stage process vessel eliminating the need for additional specialist equipment. It can be used as a mixer-dryer, mixer-granulator, de-aerator, reactor and cooler.
