PerMix PTP 45 Liter Paddle Mixer
PerMix PTP 45 Liter Paddle Mixer
SKU:PTP-7b1378
Efficient and versatile 45L Paddle Mixer for industrial mixing applications. Enhanced performance with innovative features.
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
PerMix PTP 45 Liter Paddle Mixer
$3,499.99
Quantity: 1
Claim Your Seller Account
PerMix PTP 45 Liter Paddle Mixer
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

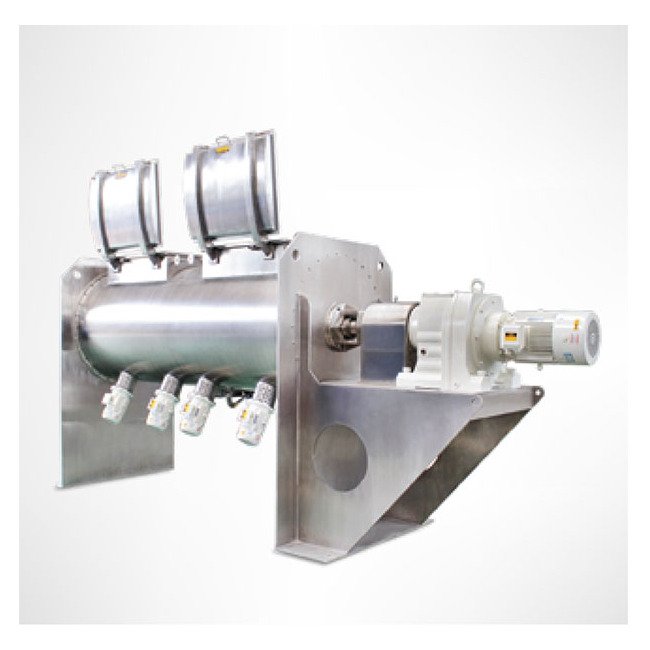

The PerMix PTP 45 Liter Paddle Mixer offers innovative mixing technology suitable for various industries. With a total capacity of 45 liters and a working capacity of 30 liters, this mixer provides efficient performance with a power consumption of 0.75 kW. The paddle design enhances mixing efficiency, especially with viscous materials like slurries. Optional features include various mixing elements, continuous operation capabilities, a heating/cooling jacket, customizable feeding and discharging methods, and construction material choices to meet specific requirements. The design also allows for easy access, maintenance, and cleaning, making it a versatile solution for mixing applications.
Product Specifications
About Permix About Permix
PerMix Tec Co., LTD. is established as the professional supplier of industrial mixing equipment and systems. Our state-of-the-art technology and know-how in this section is originally from Israel; along with the low labor cost advantage in China, PerMix is born to be your partner for the cost-effective solution to your mixing application.We are not only able to offer the single machine with modern appearance and advanced technique, but also to offer the full line system to save your time, which is one of our strong points. With our engineer's decade of experience on this area, PerMix is capable to offer the most suitable solution for any industry that has a demand for mixing.
Additional Information Additional Information
Compared with the conventional Ribbon Blenders, Paddle Mixers are superior because they are able to mix the material in a more aggressive way while keeping the similar power consumption, due to the fact that the uniquely designed paddles are more pitched than ribbons in a Ribbon Blender and move more materials in a single turn.The main difference between our PTP Paddle Mixer and PTS Plow Mixer is the mixing element: PTS Mixer uses the plough-shaped element, while PTP Mixer uses the paddle element. PerMix PTP Paddle Mixers can be used wherever the Plow Mixers are used, including but not limited to compounding, fine mixing, dispersing, suspending, emulsifying, deaerating, tempering, accelerating chemical or physical reactions, granulating, breaking down agglomerates, etc.Both Paddle and Plow are 'aggressive mixers' that are well qualified for high mixture ratio processes up to 1:1,000,000, which means the single sample of 1 ppm of a batch volume can still have the right mixture of ingredients.
Applications Applications
Bio | Chemical | Food | Health and Beauty | Nutraceutical | Pharmaceutical
Design With Multi Choppers Design With Multi Choppers
The installation of PerMix Multi-chopper in the basic PTP powder mixer enables the breaking down of agglomerates during the mixing process.Together with the mixing element, the PerMix Multi-chopper removes lumps in the initial product, chops pasty adhesives and hinders the formation of agglomeration during the moisturizing of powdered substances. The PerMix Multi-chopper is operated independently by its own motor.
Lab And Pilot Models Lab And Pilot Models

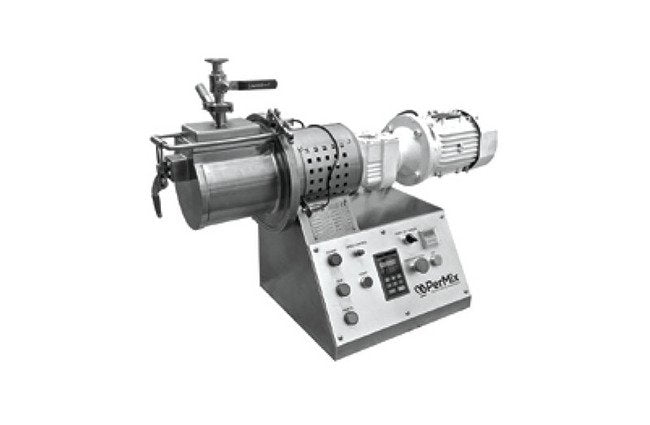

PerMix designs the full range of paddle mixers, including the lab size (5L full) & pilot size (up to 45L full) models for Research & Development purpose. The small size machine is very helpful for customers when the ingredients for R&D are expensive, thus helping our customer to save their limited budget at the first stage. With the good performance of the lab & pilot mixer, it is easy to scale up for a medium size or even bigger one.
Materials Materials
Many metal materials are available to build our Labs Mixers including but not limited to: Stainless steel 304, Stainless steel 316L, Carbon steel (Mild steel), Duplex stainless steel, Hastelloy C276/C22, Titanium, Alloy 904L, etc.
Note Note
All specifications and illustrations are as accurate as is reasonably possible, but they are not binding.PerMix reserves the right to modify the design without notice.
Optional Features Access Door
Access doors can be designed for easy cleaning, inspection & maintenance.
Optional Features Construction Material
We are able to offer mixers with contact part to be built by Carbon steel, SS304, SS316/316L, Titanium, Duplex stainless steel, Hastelloy, etc. For abrasive materials we offer hardened steel as the contact part, or the mixing elements to be coated with materials such as Tungsten Carbide or equivalent. Also we produce mixers all by stainless steel in order to meet the high hygienic requirement.
Optional Features Continuous Operation

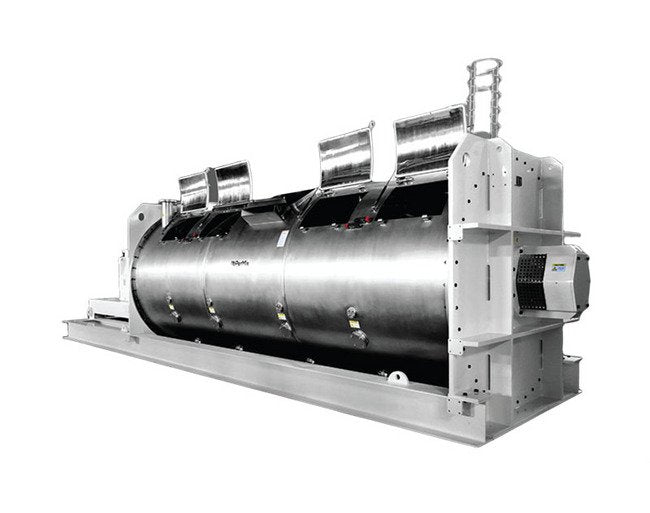

PerMix supplies mixers for continuous work when a large capacity per hour is needed for the same material. Continuous paddle mixers differ from batch paddle mixers in that the mass flow of the product is from the inlet of the container to the discharge at the opposite end.
Optional Features Drive System
Drive system by geared motor, cycloidal reducer, worm reducer, belt or chain transmission, etc.
Optional Features Extended Machine Bases
Discharge clearance of PerMix mixers are available according to customer's requirement, with extended machine bases, tubular frames, platform, etc.
Optional Features Feeding And Discharging
A variety of feeding & discharging methods can be selected by the customers. Discharging port can be by manual or pneumatic operation.
Optional Features Heatingcooling Jacket
Jacketed trough for heating/cooling operation by steam, thermal oil, or water. ASME/PED certificate can be optional for high pressure operation.
Optional Features Spray Nozzle
Liquid can be added into the powder by spray nozzles on a pipe which is installed on the top of the mixing trough. The necessary pump and tank can also be provided by PerMix.
Optional Features Various Types Of Mixing Element
PerMix provides mainly two types of mixing elements: plough (for PTS Mixer) and paddle (for PTP Mixer). Both have their advantages: the plough-shaped element shortens the mixing time, and can easily penetrate through the dense and thick powder or paste materials, while the paddle element requires less power consumption and can deal with viscous slurry materials.
Permix Labs Series Benefits Permix Labs Series Benefits
High standards of cleanliness.Complete and uniform mixing.Improved efficiency, time is money.Maximum flexibility.Direct scaling.Security before everything.
Specifications Height
950 mm
Specifications Height H1
450 mm
Specifications Length
900 mm
Specifications Length L1
480 mm
Specifications Power
0.75 kW
Specifications Speed
81 rpm
Specifications Total Capacity
45 L
Specifications Width
550 mm
Specifications Working Capacity
30 L
Vacuum Mixer Dryer Vacuum Mixer Dryer
With some special modification, the PerMix PTP series Paddle Mixer can be used as a multi-stage process vessel eliminating the need for additional specialist equipment. It can be used as a mixer-dryer, mixer-granulator, de-aerator, reactor and cooler.
