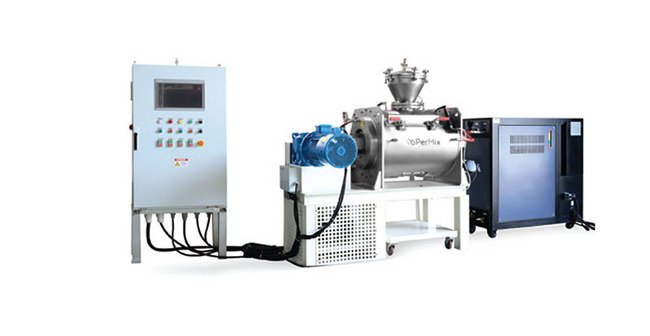

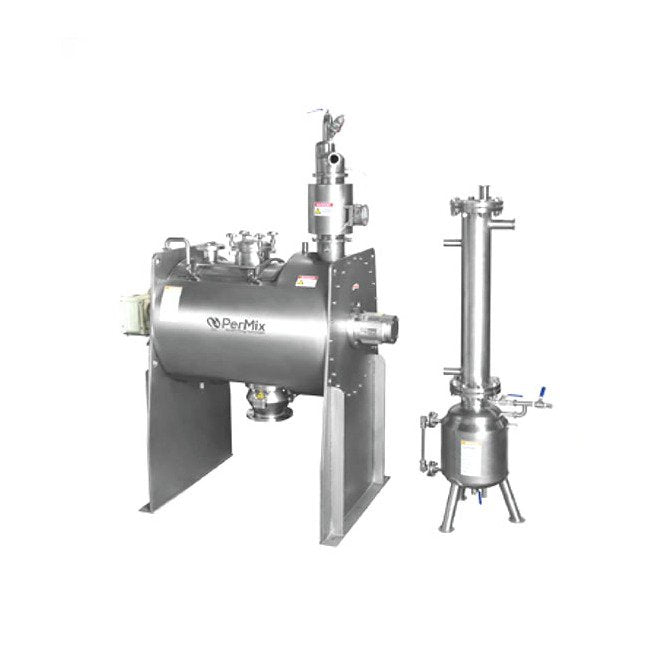

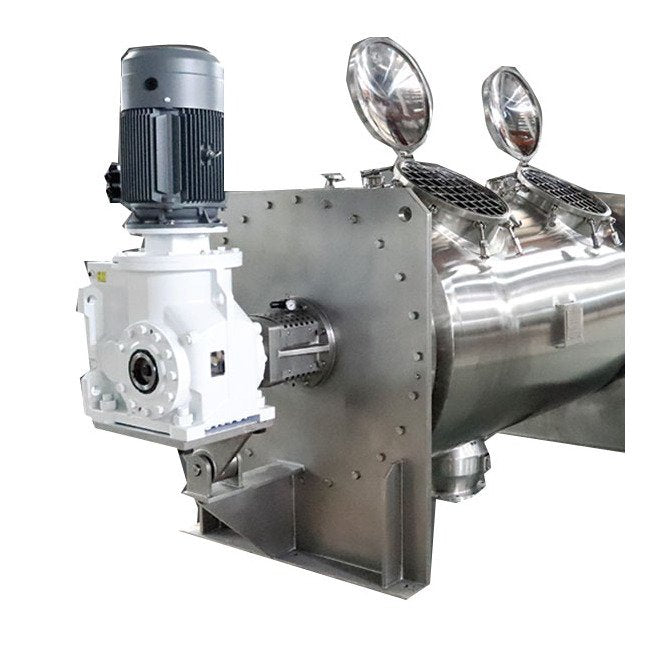

The PerMix PTP-D Vacuum Mixer Dryer is a versatile turbulent mixing reactor-dryer that excels in rapid drying, heterogeneous reactions, extraction, and sterilization. With a standard size range of 3 to 20,000 L and pressure up to 50 bar, this vacuum mixer dryer offers superior heat transfer due to high-speed agitators, resulting in agglomeration-free drying. Its customizable features include different mixing elements, sealing arrangements, and construction materials like SS316L, Titanium, and more. Cost-effective and efficient, the PerMix PTP-D Vacuum Mixer Dryer ensures short reaction times, optimal heat transfer, and easy cleaning, making it ideal for chemical, pharmaceutic and metallurgic industries.
Product Specifications
Additional Information Additional Information
PerMix PTP-D series Vacuum Mixer Dryers are widely used in the chemical, metallurgic and pharmaceutical industries among others. Standard sizes range from 3 liters up to 20,000 liters and pressure up to 50 bar.With PTP-D vacuum mixer dryer, drying time is dramatically reduced with products free from agglomerates!
Advantages Advantages
The following advantages of PerMix PTPD Vacuum Mixer Dryer makes it outstanding among the options:Cost savings: The PerMix PTP-D series Vacuum Mixer Dryer combines several machines: less pipe-work, fewer control and space requirementsShort reaction timesOptimum heat transfer via large contact areasTurbulent mixing by mechanical fluidization of reaction materialNo dead areas in reactor and the discharge areasThe PerMix PTP-D series Vacuum Mixer Dryer can also be supplied with removable mixing toolsEasy to clean and sterilizeLong service life through the use of corrosion resistant reactor materials (Stainless Steels, Hastelloy, Titanium, Nickel Alloys)
Features And Options Features And Options

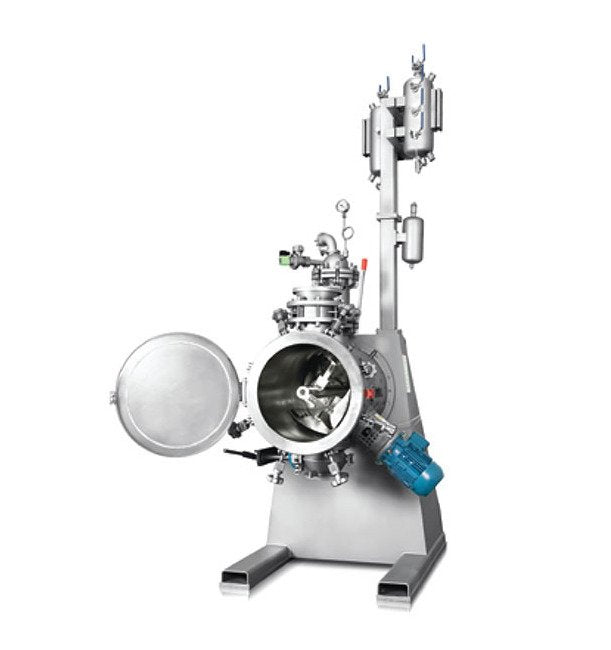

Many features and options are available with PTP-D Vacuum Mixer Dryer, including but not limited to:Different mixing elements (paddles, plows, ribbons, or combined tools)PerMix multichopper unitDifferent sealing arrangements (packing seals, double mechanical seal, Cinchseal, etc.)Vacuum filter housingHeating jacket for electric heater, thermal oil, steam, etc.Flush-fitting semi-ball discharge valveSpecial spraying unit for coatingOpen sidewall for cleaning purposesPneumatic semi-ball discharge valveDischarge screwDifferent metal constructions (SS304, SS316L, Titanium, Duplex steel, Hastelloy, etc.)Heated shaftSampling portExplosive-proof constructionControl board, etc.
Method Of Operation Method Of Operation

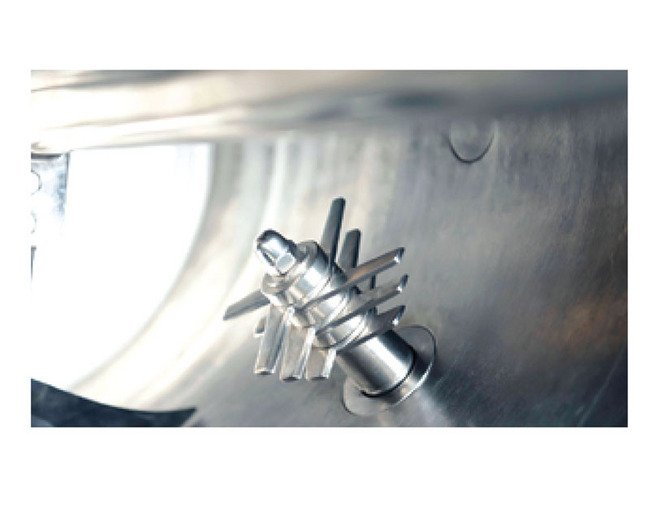

The considerably superior heat transfer characteristics of PerMix PTP-D series Vacuum Mixer Dryer are mainly attribute able to the fact that external heat applied through the contact surfaces of the mixing vessel and mixing element, supplemented by frictional heat generated during the mixing process. When operating at the usual speed, this accounts for 30 to 35 percent of the total heat applied. Heat transfer is not inhibited by agglomerates or layers of material adhering to the internal components of the tank. This is largely due to the comminuting units and the high-speed, edge-sweeping paddle agitators, which ensure rapid circulation of the materials at the contact faces.The PerMix PTP-D series Vacuum Mixer Dryer is used for drying operations usually operated at higher than critical speed, at any rate for fine drying after the phase change. In conjunction with the action of the rotary cutter and multi- chopper units, this causes a large degree of fluidization of the material to be dried and thereby promotes the evaporation of the fluids. The huge rate at which evaporation is effected practically eliminates the need for the usual auxiliary processes, such as scrubbing with solvents.For drying under vacuum the PerMix PTP-D series Vacuum Mixer Dryer can be filled from 50 to 75 percent. By virtue of the rapid change of material at the contact face, optimum use is made of the overall heat exchange area. The built-in rotary cutter unit ensures that the product is free from agglomerates and the grain size is so fine that, as a rule, no subsequent micronizing is required. The filter chamber connected with the vacuum dome has a mechanically or pneumatically-operated device for cleaning the filter. Additional units for the removal of vapor or recovery of solvents take account of individual user requirements.
Specifications Pressure
0 to 50 bar
Specifications Standard Size
3 to 20000 L
Specifications Type
Vacuum
