PerMix PTS 1500L Plow Mixer
PerMix PTS 1500L Plow Mixer
SKU:PTS-2a4b78
Enhance your mixing process with the PerMix PTS 1500L Plow Mixer - unparalleled versatility and efficiency for various industries.
Regular price
$18,999.00
Regular price
Sale price
$18,999.00
Unit price
per
Initiate Order
PerMix PTS 1500L Plow Mixer
$18,999.00
Quantity: 1
Claim Your Seller Account
PerMix PTS 1500L Plow Mixer
$18,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PerMix PTS 1500L Plow Mixer is a cutting-edge solution designed to meet the diverse mixing needs of various industries. With a total capacity of 1500 liters and a working capacity of 1000 liters, this mixer offers exceptional versatility. It features a powerful 30 kW motor, operates at a speed of 85 rpm, and is constructed with high-quality materials to ensure durability and efficiency. The optional features include various types of mixing elements, continuous operation capabilities, heating/cooling jacket for temperature control, and customizable feeding & discharging methods. Ideal for dry powder mixing, paste mixing, wet slurry applications, and more, this Plow Mixer is a reliable asset for laboratories, R&D facilities, and large-scale production environments.
Product Specifications
Additional Information Additional Information
The PerMix PTS series Plow Mixer can be used for numerous processing, including compounding, fine mixing, dispersing, suspending, emulsifying, deaerating, tempering, accelerating chemical or physical reactions, granulating, breaking down agglomerates, etc. It is particularly suited for such difficult processes as mixing trace elements in proportions of 1 in 100,000 to 1 in 1,000,000 parts.
Applications Applications
PerMix PTS series Plow Mixer has a wide range of applications:Dry powder mixing: Food flavoring/additives, Sponge/ cake mixes, Cosmetics, Pharmaceuticals, Cement, Powdered rubberPaste mixing: Biscuit creams, dough, PVC pastes, Car body fillers/putties, Sugar/marzipan paste, Toiletry pastes, Tile adhesives and groutsMixing of wet slurry: Filter cake re-slurring, dough, Fiber glass resin dough puttyWet granulation Liquid coating of powders and granulesFat and oil incorporation Vacuum drying Hot air drying
Applications Other Applications
Bio | Chemical | Food | Health and Beauty | Nutraceutical | Pharmaceutical
Basic Construction Basic Construction

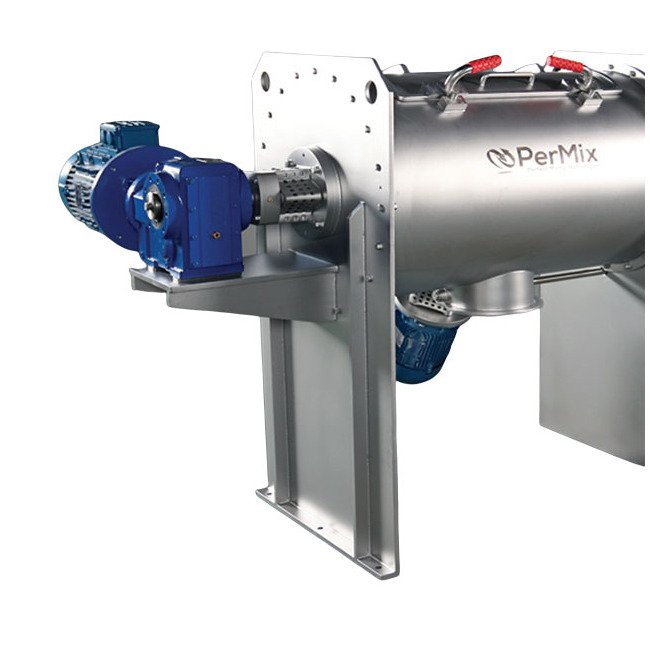

PerMix PTS series Plow Mixer consists of a centrally mounted horizontal shaft that rotates within a cylindrical container, plow shaped mixing elements that are attached to the centrally mounted shaft, special openings at the top for feeding materials, flush fitting access doors in the front of the mixer, a flush fitting discharge valve at the bottom of the mixer which is pneumatically or manually operated, and a complete drive unit.
Lab And Pilot Models Lab And Pilot Models

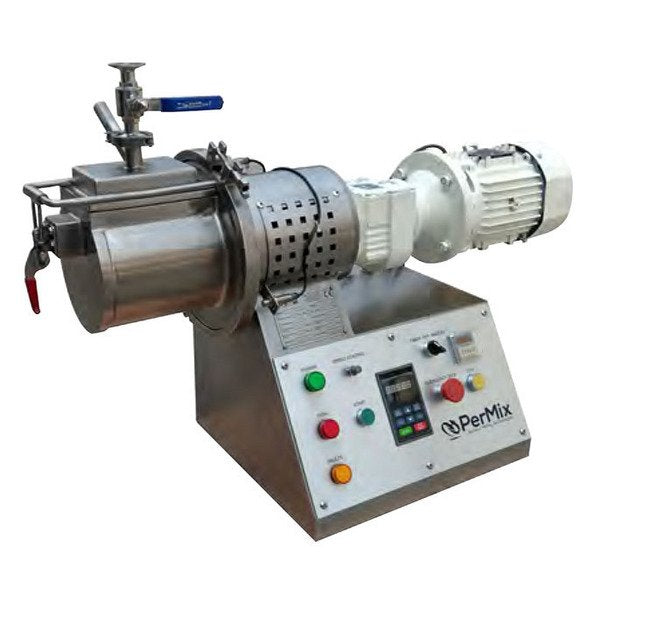

PerMix is able to offer lab & pilot size Plow Mixers for Research & Development purpose. The small size machine is very helpful for customers when the ingredients for R&D are expensive, and to meet the budget limit at the first stage.With the good performance of the lab & pilot mixer, it is easy to scale up for a medium size or even bigger one.
Note Note
All specifications and illustrations are as accurate as is reasonably possible, but they are not binding.PerMix reserves the right to modify the design without notice.
Operation Process Operation Process
The mixing drum of a Plow Mixer is filled from 30% to 70% capacity, allowing space for individual particles to be dispersed within the main area of the mixer. The plow-shaped mixing elements create intense axial and radial movement causing the product to move throughout the mixing area. The shape and angle, together with the adjustment and rotation of the mixing elements and the mixing drum, cause the product to be lifted off the surface of the drum wall. The product is automatically discharged while the machine is still running so that any segregation is prevented.
Optional Features Access Door
Access doors can be designed for easy cleaning, inspection & maintenance.
Optional Features Construction Material
We are able to offer mixers with contact part to be built by Carbon steel, SS304, SS316/316L, Titanium, Duplex stainless steel, Hastelloy, etc. For abrasive materials we offer hardened steel as the contact part, or the mixing elements to be coated with materials such as Tungsten Carbide or equivalent. Also we produce mixers all by stainless steel in order to meet the high hygienic requirement.
Optional Features Continuous Operation
PerMix supplies mixers for continuous work when a large capacity per hour is needed for the same material. Continuous plow mixers differ from batch plow mixers in that the mass flow of the product is from the inlet of the container to the discharge at the opposite end.
Optional Features Drive System
Drive system by geared motor, cycloidal reducer, worm reducer, belt or chain transmission, etc.
Optional Features Extended Height Bases
Discharge clearance of PerMix mixers are available according to customer's requirement, with extended machine bases, tubular frames, platform, etc.
Optional Features Feeding And Discharging
A variety of feeding & discharging methods can be selected by the customers. Discharging port can be by manual or pneumatic operation.
Optional Features Heatingcooling Jacket
Jacketed trough for heating/cooling operation by steam, thermal oil, or water. ASME/PED certificate can be optional for high pressure operation.
Optional Features Optional Features
With some special modifications - for example heating jacket for the mixing tank, mechanical shaft seal, special segmented discharge valve, dust filter housing, temperature control system - the PerMix PTS series Plow Mixer can be used as a multi-stage process vessel eliminating the need for additional specialist equipment. It can be used as a vacuum mixer dryer, mixer-granulator, de-aerator, reactor and cooler.
Optional Features Spray Nozzle
Liquid can be added into the powder by spray nozzles on a pipe which is installed on the top of the mixing trough. The necessary pump and tank can also be provided by PerMix.
Optional Features Various Types Of Mixing Element
PerMix provides mainly two types of mixing elements - plow (for PTS Mixer) and paddle (for PTP Mixer). Both have their advantages: the plow shaped element can easily penetrate through the dense and thick powder or paste materials, while the paddle element can cover an even wider range of viscosity.
Special Design With Choppers Special Design With Choppers
The installation of PerMix High Speed Side Choppers in the basic PTS mixer enables the breaking down of agglomerates / lumps, and also accelerates the mixing process. Together with the mixing element, the PerMix Side Chopper removes lumps in the initial product, chops pasty adhesives and hinders the formation of agglomeration during the moisturizing of powdered substances. The PerMix Side Chopper is operated independently by its own motor.
Specifications Height
2000 mm
Specifications Height H1
600 mm
Specifications Length
3200 mm
Specifications Length L1
2110 mm
Specifications Power
30 kW
Specifications Speed
85 rpm
Specifications Total Capacity
1500 L
Specifications Width
1200 mm
Specifications Working Capacity
1000 L
Vacuum Mixer Dryer Vacuum Mixer Dryer
With some special modifications - for example heating jacket for the mixing tank, mechanical shaft seal, special segmented discharge valve, dust filter housing, temperature control system - the PerMix PTS series Plow Mixer can be used as a multi-stage process vessel eliminating the need for additional specialist equipment. It can be used as a vacuum mixer dryer, mixer-granulator, de-aerator, reactor and cooler.
