PerMix PTU 300L 3D Powder Mixer
PerMix PTU 300L 3D Powder Mixer
SKU:PTU-866721
Achieve optimal mixing efficiency with the PerMix PTU 300L 3D Powder Mixer. Perfect for industries requiring hygienic and homogeneous mixing.
Regular price
$18,999.00
Regular price
Sale price
$18,999.00
Unit price
per
Initiate Order
PerMix PTU 300L 3D Powder Mixer
$18,999.00
Quantity: 1
Claim Your Seller Account
PerMix PTU 300L 3D Powder Mixer
$18,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PerMix PTU 300L 3D Powder Mixer offers impeccable mixing capabilities for powdery substances of varying densities and particle sizes. Featuring a total volume of 300 L and an operation volume of 150 L, this mixer ensures homogeneity in mixing with a mixing time of 3 to 10 minutes. With a power of 4 kW and a speed of 8 rpm, it caters to industries like Chemical, Food, Nutraceutical, and Pharmaceutical. The mixer's 3D mixing mechanism, interchangeable drums, and robust construction in materials like SS304 and Titanium ensure superior mixing efficiency, easy cleaning, and safe operation.
Product Specifications
Additional Information Additional Information
During the mixing process the powder moves in a random direction from center to the end of the trough and at the same time from top to the bottom. In such a multi-dimensional way, the PerMix PTU series 3D Mixer needs only short mixing time and relatively low power consumption.The mixer's "Gentle" mixing action is good for final products that are sensitive to high shear of the mixer and tend to break or to reduce their particles size, or are highly abrasives.
Advantages And Options Advantages And Options
PerMix PTU series 3D Mixer has the following advantages over conventional solutions:Free of cross contamination due to the independent drums for different batches when highly hygienic processing is required (for size PTU-50 and smaller)Interchangeable drums & changing of drums (for size PTU-50 and smaller)Complete discharge and easy cleaningExcellent homogeneity of mixing with no dead pointsSizes from 5 to 300 lit. total volumeSafety enclosure to prevent human injury.Drums to be built in a broad variety of materials, e.g. SS304, SS316/316L,Titanium, Duplex S/S, Hastelloy, etc. Internal and external finish according to the customer's needs.Safety cage to prevent human injury.Time-saving, fast exchange of the container, due to simple and fast mounting of the container.
Applications Applications
Foods: Breakfast Cereals, Enzymes, Flavours, Herbs, Minerals, Nutraceuticals, Seasonings, Spices, Tea Mixes, Tobacco, Vitamin MixesChemicals: Agrochemicals, Ceramic Powders, Detergents, Drugs, Dyestuffs, Leather Auxiliaries, Metal Powders, Pigments, Plastic Granules, Plastic Pellets, Plastic Powders, Textile AssistantsPharmaceuticals: Active Agents, Biological Solids, Carcinogenic Substances, Concentrated Active Ingredients, Generics, Intermediate Products, Sterile Products, Toxic Substances
How It Works How It Works

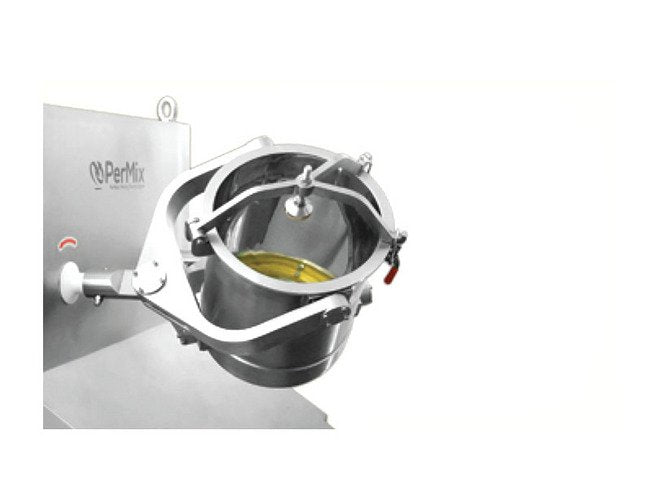

PerMix 3D Mixer consists of a mixing drum which is rotated by two arms, and one arm (the drive arm) is driven by a motor & gearbox. The slave arm is driven to not only rotate, but also move horizontally. During the mixing operation, the product inside the drum moves in random directions from center to the end and meanwhile from top to the bottom, creating a 3D way.
Note Note
All specifications are as accurate as is reasonably possible, but they are not binding.PerMix reserves the right to modify the design without notice.
Specifications Height
2100 mm
Specifications Intensifier Bar
Not Available
Specifications Length
2400 mm
Specifications Mixing Time
3 to 10 min
Specifications Mixing Volume
5 %
Specifications Most Used Industry
Chemial | Food | Nutraceutical | Pharmaceutical
Specifications Operation Volume
150 L
Specifications Percent Of Product Residue
<1 %
Specifications Power
4 kW
Specifications Size Footprint
Medium (2.12 m²)
Specifications Speed
8 rpm
Specifications Total Volume
300 L
Specifications Weight
1600 kg
Specifications Width
2000 mm
