PerMix PTU 5L 3D Mixer
PerMix PTU 5L 3D Mixer
SKU:PTU-08a1e6
Achieve perfect homogeneity with the PerMix PTU 5L 3D Mixer. Ideal for Chemical, Food, Nutraceutical, and Pharmaceutical industries.
Regular price
$4,899.99
Regular price
Sale price
$4,899.99
Unit price
per
Initiate Order
PerMix PTU 5L 3D Mixer
$4,899.99
Quantity: 1
Claim Your Seller Account
PerMix PTU 5L 3D Mixer
$4,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your mixing efficiency with the PerMix PTU 3D Mixer. With a total volume of 5L and advanced mixing technology, this mixer ensures homogeneous blending of powders with varying properties. Its hygienic design, interchangeable drums, and excellent mixing homogeneity make it ideal for industries like Chemical, Food, Nutraceutical, and Pharmaceutical.
Product Specifications
Additional Information Additional Information
During the mixing process the powder moves in a random direction from center to the end of the trough and at the same time from top to the bottom. In such a multi-dimensional way, the PerMix PTU series 3D Mixer needs only short mixing time and relatively low power consumption.The mixer's "Gentle" mixing action is good for final products that are sensitive to high shear of the mixer and tend to break or to reduce their particles size, or are highly abrasives.
Advantages And Options Advantages And Options
PerMix PTU series 3D Mixer has the following advantages over conventional solutions:Free of cross contamination due to the independent drums for different batches when highly hygienic processing is required (for size PTU-50 and smaller)Interchangeable drums & changing of drums (for size PTU-50 and smaller)Complete discharge and easy cleaningExcellent homogeneity of mixing with no dead pointsSizes from 5 to 300 lit. total volumeSafety enclosure to prevent human injury.Drums to be built in a broad variety of materials, e.g. SS304, SS316/316L,Titanium, Duplex S/S, Hastelloy, etc. Internal and external finish according to the customer's needs.Safety cage to prevent human injury.Time-saving, fast exchange of the container, due to simple and fast mounting of the container.
Applications Applications
Foods: Breakfast Cereals, Enzymes, Flavours, Herbs, Minerals, Nutraceuticals, Seasonings, Spices, Tea Mixes, Tobacco, Vitamin MixesChemicals: Agrochemicals, Ceramic Powders, Detergents, Drugs, Dyestuffs, Leather Auxiliaries, Metal Powders, Pigments, Plastic Granules, Plastic Pellets, Plastic Powders, Textile AssistantsPharmaceuticals: Active Agents, Biological Solids, Carcinogenic Substances, Concentrated Active Ingredients, Generics, Intermediate Products, Sterile Products, Toxic Substances
Design With Interchangeable Drums Design With Interchangeable Dr

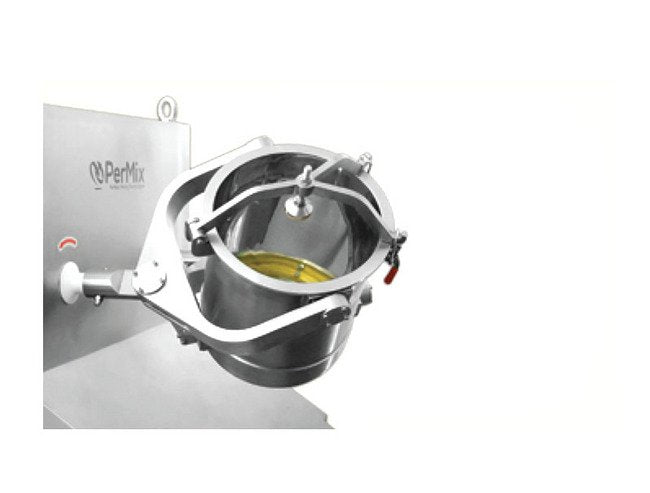

For the machine size of PTU-5, PTU-15, and PTU-50, PerMix offers the option for the 3D mixer to work with interchangeable drums. A drum holder is designed to hold the drum with fast assembly. When the mixer rotates, the drum and drum holder are rotated together by the two arms.Moreover, drums of different sizes can be fit into the same drum holder with necessary adaptor; for example, PTU-5 can work with drum sizes of 1L, 2L up to 5L.
How It Works How It Works
PerMix 3D Mixer consists of a mixing drum which is rotated by two arms, and one arm (the drive arm) is driven by a motor & gearbox. The slave arm is driven to not only rotate, but also move horizontally. During the mixing operation, the product inside the drum moves in random directions from center to the end and meanwhile from top to the bottom, creating a 3D way.
Note Note
All specifications are as accurate as is reasonably possible, but they are not binding.PerMix reserves the right to modify the design without notice.
Specifications Height
900 mm
Specifications Intensifier Bar
Not Available
Specifications Length
1000 mm
Specifications Mixing Time
3 to 10 min
Specifications Mixing Volume
5 %
Specifications Most Used Industry
Chemial | Food | Nutraceutical | Pharmaceutical
Specifications Operation Volume
2.5 L
Specifications Percent Of Product Residue
<1 %
Specifications Power
0.25 kW
Specifications Size Footprint
Medium (2.12 m²)
Specifications Speed
28 rpm
Specifications Total Volume
5 L
Specifications Weight
200 kg
Specifications Width
700 mm
