PerMix PVC 125L Vacuum Emulsifying Mixer
PerMix PVC 125L Vacuum Emulsifying Mixer
SKU:PVC-d7c5e2
PerMix PVC 125L Vacuum Emulsifying Mixer - High-quality, air-free mixing system for food, cosmetic, chemical, and pharmaceutical production.
Regular price
$28,999.00
Regular price
Sale price
$28,999.00
Unit price
per
Initiate Order
PerMix PVC 125L Vacuum Emulsifying Mixer
$28,999.00
Quantity: 1
Claim Your Seller Account
PerMix PVC 125L Vacuum Emulsifying Mixer
$28,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PerMix PVC 125L Vacuum Emulsifying Mixer is a high-quality, air-free mixing system designed for production in various industries, including food, cosmetic, chemical, and pharmaceutical. With a total volume of 125 liters and powerful emulsifying motor, it efficiently mixes, disperses, and homogenizes materials to create stable emulsions with long shelf life. Equipped with innovative features like a jacket for heating/cooling, pneumatic elevation, and fully automated controls, this mixer ensures precision and reliable performance for Mayonnaise, Ketchup, Sauces, and more.
Product Specifications
Additional Information Additional Information
PerMix PVC series Vacuum Emulsifying Mixers cater to various work processes which normally require more machinery in one system. In the PVC series Vacuum Emulsifying Mixer, base materials can be mixed in liquids, dispersed and homogenized while at the same time all air is removed. This produces stable emulsions with a long shelf life in storage.
Applications Applications
Bio | Chemical | Food | Health and Beauty | Nutraceutical | Pharmaceutical
Features And Options Features And Options
Jacket for heating/cooling of the mixing chamberPneumatic/Motorized elevation for the hopper coverBy-pass lobe pump for low shearing mixing and dischargingPre-mix tanks for liquid materialsVolumetric flow meter for automatic OFF of liquid feedingManual feeding hopper for small ingredientsMobile under-frameFully automation control of the vacuum emulsifying system
How It Works How It Works

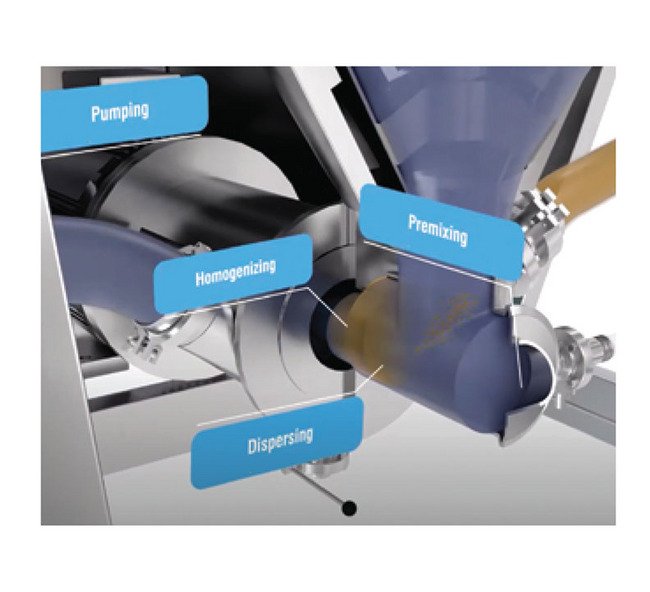

PerMix PVC Vacuum Emulsifying Mixer includes a mixing tank (with or without jacket), an internal slow running anchor mixer, and an external inline high shear mixer.The inline mixer has several inlet ports, and the main inlet is connected with the bottom discharge of the tank, with other two inlets connected with other liquid and powder tanks. The inline mixer's outlet goes back to the top section of the mixing tank.The basis of this plan is the PerMix innovative inline mixer, which has a mixing, dispersing and emulsifying head with multi-working chambers. It can be supplied with mixing vanes, dispersion components or emulsifying tools. For each operation, these components can be interchanged or combined so that the mixer operates to suit every product possibility.The pump action allows the product to circulate from the feed hoppers through the working hopper continuously. All the parts that come in contact with the product are stainless steel.
Note Note
All specifications are as accurate as is reasonably possible, but they are not binding.Customized sizes are available against request.PerMix reserves the right to modify the design without notice.
Specifications Closed Height
1740 mm
Specifications Emulsifying Motor Power
7.5 kW
Specifications Length
2050 mm
Specifications Open Height
2100 mm
Specifications Scraper Motor Power
0.55 kW
Specifications Total Volume
125 L
Specifications Width
1920 mm
Specifications Working Volume
100 L
