The PerMix PVM 4000L Total Capacity V-Blender Mixer is a top choice for institutions seeking precise, efficient mixing of dry powders, granules, and crystals. With a working capacity of 2000 liters and a power of 11 kW, this mixer ensures uniform blending in various industries like Chemical, Food, Nutraceutical, and Pharmaceutical. Its innovative design reduces material distortion, eliminates contamination risks, and offers customization options for optimal performance. Easy to operate, clean, and maintain, the PerMix PVM Mixer guarantees gentle yet thorough mixing for a wide range of applications.
Product Specifications
Additional Information Additional Information

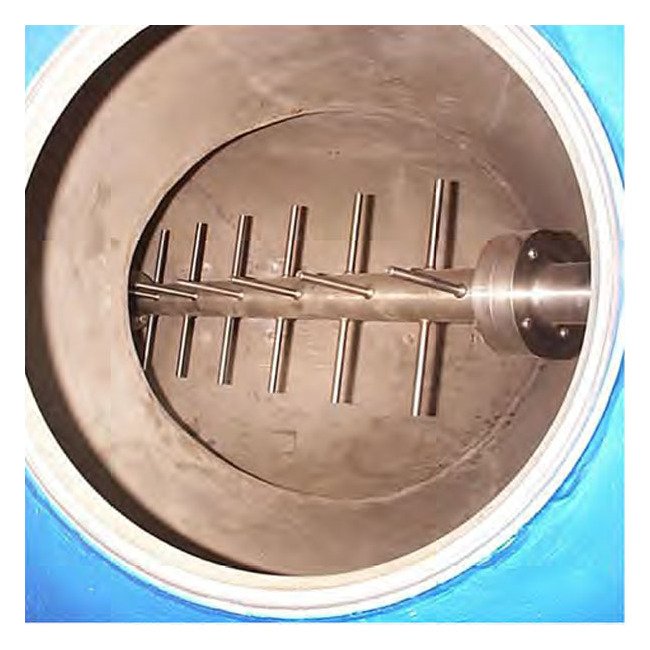

PreMix PVM series V shaped Mixers are featured by a gentle high-flowing mixing process for solid/solids in a proportion of up to 1:100.000 with the possibility of using an intensifier bar to enhance the mixture, and solids/liquids in power or granulate form with different specific weights.
Advantages Advantages
PerMix V Cone Mixers are featured with the following advantages:Minimized distortion to the materials due to absence of any moving bladesNo contamination due to the closed area by only stainless steel wallsEspecially suitable to mix powders or granules which are temperature sensitive, easily oxidizable, crystallized, volatile, poisonous or with irritating smellMany options are available, such as variable speed, automatic stop in discharge position, air operated valve, touch screen operating panel, safety fence, side chopper, etc.Suitable for uniform mixing of free flowing, dry powders, crystals and granules with more or less the same particle size, bulk density and fluidity.Minimize damage (very gentle mixing) to the mixed materialsZero or almost Zero contamination risk, due to the closed area by only stainless-steel walls.Irritating smell. Very good for abrasive products mixing - no shear.Many options are available such as: Double jacket for heating/cooling, Intensifier bar for lump breaking, variable speed, etc.Easy to clean, maintain and simple operation.
Applications Applications
PerMix PVM series V shaped Mixers are widely used in pharmaceuticals, colors, plastics resins, food products, ceramic glazes, metal powders, cosmetics, detergents, insecticides, explosives materials, and a lot of others:Food: Breakfast Cereals, Enzymes, Flavours, Herbs, Minerals, Nutraceuticals, Seasonings, Spices, Tea Mixes, Tobacco, Vitamin MixesChemicals: Agrochemicals, Ceramic Powders, Detergents, Drugs, Dyestuffs, Leather Auxiliaries, Metal Powders, Pigments, Plastic Granules, Plastic Pellets, Plastic Powders, Textile AssistantsPharmaceuticals: Active Agents, Biological Solids, Carcinogenic Substances, Concentrated Active Ingredients, Generics, Intermediate Products, Sterile Products, Toxic Substances
Features And Options Features And Options
The simplicity of design of the PerMix PVM series V shaped Mixer allows a low initial cost, easy maintenance and simple operation. It is available from the 2 liter laboratory to large industrial 6000 liter units. The PerMix PVM series V shaped Mixer can be sup plied with a variety of accessories, including:Internal choppersDetachable vesselsVacuum/Drying execution with heating jacket, vacuum pump, dust filter, condenser, etcSpecial spray unitSpecial safety fenceMobile trolleyPLC control & touch screen
How It Works How It Works

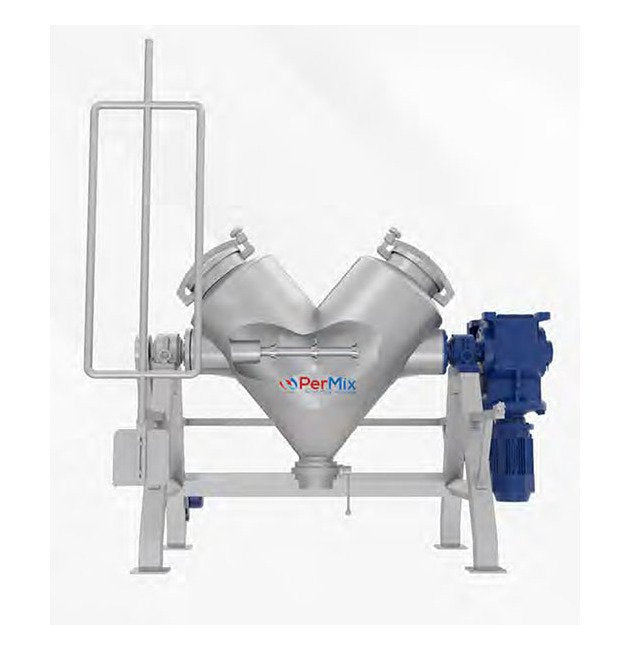

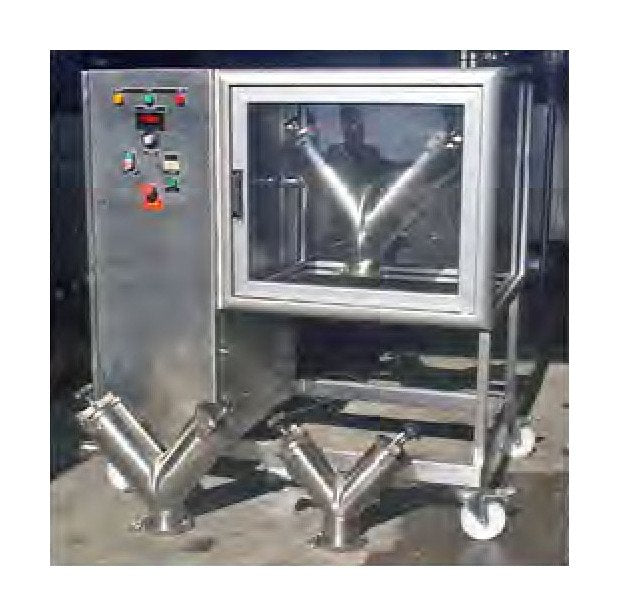

The PerMix PVM series V shaped Mixer has a "V" chamber made up by two cylinders. Powders and granules are fed into the V chamber either manually or by a vacuum conveyor.A gear motor drives V chamber to roll in 360 degrees. This multi-dimensional motion makes the powders and granules inside tumbling up and down and colliding to each other all the time, and achieve uniform mixing in short time.A safety barrier is often mounted in front of the mixer; sometimes a fully enclosed enclosure is requested to surround the mixer, supplying the safety function to stop the mixer immediately when the barrier or enclosure is open, and prevent the mixing vessel to run when the barrier or enclosure is not closed.
Note Note
All specifications are as accurate as is reasonably possible, but they are not binding.Customized sizes are available against request.PerMix reserves the right to modify the design without notice.
Specifications Height
2880 mm
Specifications Intensifier Bar
Available
Specifications Length
4450 mm
Specifications Mixing Time
10 to 30 min
Specifications Mixing Volume
50 %
Specifications Most Used Industry
Chemial | Food | Metal Powders | Nutraceutical | Pharmaceutical
Specifications Operation Height
3300 mm
Specifications Percent Of Product Residue
<1 %
Specifications Power
11 kW
Specifications Size Footprint
High (9.51 m²)
Specifications Speed
8 to 28 rpm
Specifications Total Capacity
4000 L
Specifications Width
3350 mm
Specifications Working Capacity
2000 L
