The PerMix PVR 6000L Total Capacity Vertical Ribbon Mixer is an efficient and versatile blending machine designed for batch mixing of free-flowing powders, granules, and pellets. With a compact construction featuring a central tapered ribbon and a screw mounted on a central shaft, this mixer ensures rapid material exchange and homogeneity without excessive mechanical or thermal stress. Ideal for industries like Bio, Chemical, Food, Pharmaceutical, and more, the PVR Mixer offers gentle mixing for sensitive materials, full discharge with minimal residue, and high heat transfer rates. With customizable options for mixing tools, construction materials, feeding/discharging methods, and heating/cooling capabilities, this mixer is a reliable solution for various institutional procurement needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
PerMix Vertical Ribbon Mixers are able to give perfect result of mixing due to the design of an outer spiral type mixing element with an inner screw, rotating together in a conical shape trough, which provides a multidimensional movement of the materials, and a complete discharge of all the mixed material without any residue. The Vertical Ribbon Mixers are also featured with no contamination to the product, due to the fact that the shaft sealing is above the working area, thus no contact with the product.
Advantages Advantages
Medium level of accuracy with minor component ratio to be 1:100,000Gentle mixing for sensitive materials without generation of heatLow minimal quantity requiredFull discharge with minimal residueEasy to clean in either dry or wet wayHigh heat transfer rate, ideal for heating or cooling process of the powdersChopper can be installed for intensive mixing and lump breaking
Applications Applications
Bio | Chemical | Food | Health and Beauty | Nutraceutical | Pharmaceutical
How It Works How It Works

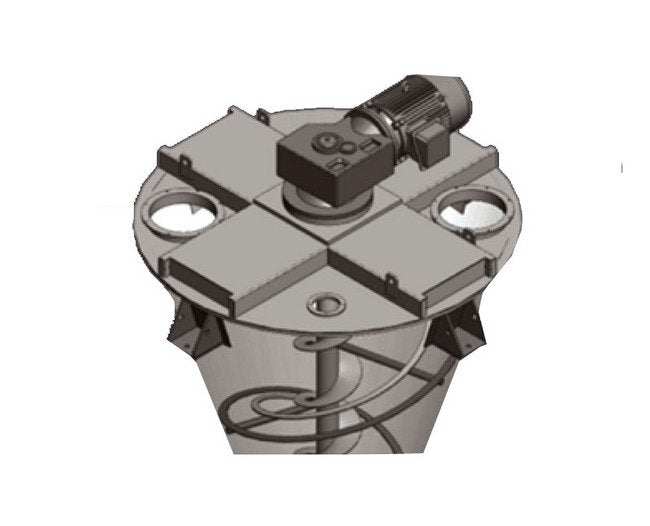

The construction of PerMix PVR series Vertical Ribbon Mixer is very compact: it consists of a cone vessel with the drive unit on the top and discharge valve at the bottom. In the cone vessel, there are a central tapered ribbon with very small clearance between its edge and the wall, and additionally a screw mounted on the central shaft.The ribbon and the screw move the materials upward from the bottom to the top, where the materials then drop by gravity into the center. During this continuous operation, material particles and heat are exchanged quickly which leads to a homogeneous product.Besides, the material particles are mixed with minimal mechanical and thermal stress, which makes this type of mixer a good solution for fragile and heat sensitive product.
Note Note
Customized sizes available as per request.All specifications and illustrations are as accurate as is reasonably possible, but they are not binding.PerMix reserves the right to modify the design without notice.
Options Construction Material And Finish
Our mixers can be built in Carbon steel, SS304, SS316L, Titanium, Hastelloy, etc. Finish of stainless steel can be mirror polished or bead blasted.
Options Feeding And Discharging
A variety of feeding & discharging methods can be selected by the customers.
Options Heatingcooling Jacket
Jacketed trough for heating/cooling operation.
Options Mixing Tool
We offer several types of mixing tool for different sizes and applications.
Options Spray Nozzle
Liquid can be added into the powder by spray nozzles on the top.
Options Vacuum Drying And Deaerating
The PVR mixer can be designed for vacuum drying & deaerating or for inner pressure working for special applications.
Specifications Diameter
2715 mm
Specifications Inlet Size
400 mm
Specifications Outlet Size
400 mm
Specifications Power
30 kW
Specifications Total Capacity
6000 L
Specifications Total Height
4100 mm
Specifications Weight
3000 kg
Specifications Working Capacity
4200 L
