The Petersen® 116 PSI Triple Deadman Inflation Controller is a reliable solution for precise pressure control in demanding applications. Designed with built-in pressure relief valves, this controller ensures safety and accuracy during inflation processes. It features a sturdy 1/4 Inch Safety Coupler and Nipple for secure connections and is ideal for use with 161-0 Series High Pressure Flat Form Bags. With a compact design and a shipping weight of 6 lb, this inflation controller offers portability and convenience for various inflation tasks.
Product Specifications

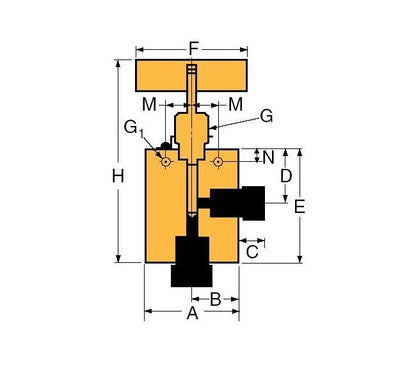

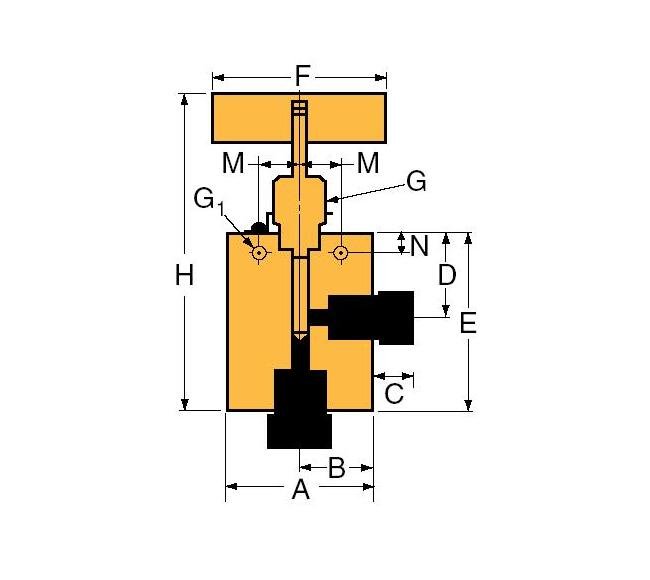

Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
0.75 in | 19.05 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
SW375
Specifications C Length
0.47 in | 11.94 mm
Specifications D Height
1.19 in | 30.23 mm
Specifications E Height
2.19 in | 55.63 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.75 in | 19.05 mm
Specifications H Height
5.75 in | 146.05 mm
Specifications M Length
0.62 in | 15.75 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.250 in | 6.35 mm
Specifications Outside Diameter Tube
3/8 in | 9.53 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
0.95
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.75 in | 19.1 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance Valve Maintenance
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: RSW4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options Valve Options
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing and/or extended stuffing box is available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.â TG standard valve with Teflon glass packing to 600°F (316°C).GY standard valve with graphite braided yarn packing to 650°F (343°C).â Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.
