Petersen® 136-0 Series Municipal Style Kevlar® Reinforced Rubber Plug
Petersen® 136-0 Series Municipal Style Kevlar® Reinforced Rubber Plug
SKU:LOW-15a81c
Durable Petersen® 136-0 Series 6 Inch Kevlar® Municipal Rubber Plug for secure and reliable municipal plumbing applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Petersen® 136-0 Series Municipal Style Kevlar® Reinforced Rubber Plug
$89.99
Quantity: 1
Claim Your Seller Account
Petersen® 136-0 Series Municipal Style Kevlar® Reinforced Rubber Plug
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen® 136-0 Series 6 Inch Municipal Style Kevlar® Reinforced Rubber Plug is designed for maximum durability and reliability in municipal applications. With a maximum pipe diameter of 6 inches and a 1/2 inch bypass size, this plug offers secure sealing and bypass options for various pipe sizes. Made with Kevlar® reinforcement, it ensures strength and longevity. The plug features a 1/4 M valve type, 36 psig required inflation, and a deflated length of 13.75 inches, making it a versatile and essential solution for municipal plumbing needs.
Product Specifications

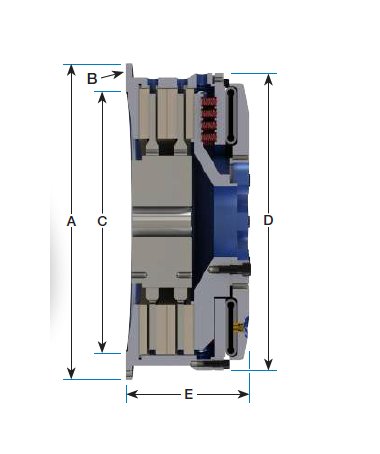

Dimensions Diameter B Metric Mounting
22.0 mm
Dimensions Dimension A Imperial Mounting
37.000 in | 939.80 mm
Dimensions Dimension A Metric Mounting
940.00 mm
Dimensions Dimension A Tolerance Imperial Mounting
+0.000 mm | -0.003 mm | +0.00 in | -0.08 in
Dimensions Dimension A Tolerance Metric Mounting
+0.00/-0.08 mm
Dimensions Dimension B Diameter Imperial Mounting
25/32 in
Dimensions Dimension B Hole Circle Imperial Mounting
35.50 in | 901.7 mm
Dimensions Dimension C Imperial Mounting
30.378 in | 771.60 mm
Dimensions Dimension C Metric Mounting H7
775.08 mm
Dimensions Dimension C Tolerance Imperial Mounting
+0.00 mm | -0.08 mm | +0.000 in | -0.003 in
Dimensions Dimension D
32 in | 812.8 mm
Dimensions Dimension E Ductile Slotted Center Plate
17.88 in | 454.15 mm
Dimensions Dimension E Ventilated Center Plate
17.88 in | 454.15 mm
Dimensions Hole Circle B Metric Mounting
900.0 mm
Dimensions Maximum Bore Range
7.00 in | 177.8 mm
Dimensions Minimum Bore Range
3.50 in | 88.9 mm
Dimensions Quantity Imperial Mounting
18
Dimensions Quantity Metric Mounting
18
Features Features
Available in hydraulic or pneumatic releaseHigh cycle lifePredictable preventative maintenanceSolid, slotted, or ventilated center plate optionsAvailable with Full Marine Corrosion Protection packageCompatible with the Power Performance LI upgradeType approval certification available: DNV, ABS, ATEX
Note Note
Consult WPT® Application Engineering for application assistance, service factors, specifications, and detailed drawings/3D models.
Specifications Lining Area
2500 in² | 16000 cm²
Specifications Maximum Slip Speed
700 rpm
Specifications Maximum Speed Hub And Center Plate Cp
1140 rpm
Specifications Note For Static Torque Rating At Minimum Release
Dynamic (slipping) Torque is 75% of the Static Torque.
Specifications Static Torque Rating At 60 Pound Force Per Square
480000 lbf·in | 54200 N·m
Specifications Static Torque Rating At 75 Pound Force Per Square
600000 lbf·in | 67800 N·m
Specifications Static Torque Rating At 90 Pound Force Per Square
720000 lbf·in | 81300 N·m
Weight And Inertia Hub And Center Plate Cp Inertia
660 lb·ft² | 28 kg·m²
Weight And Inertia Hub And Center Plate Cp Weight
940 lb | 430 kg
Weight And Inertia Total Weight
2400 lb | 1100 kg
