The Petersen® 140-4 Series Stainless Steel Countersunk Plug is specifically designed for heavy-duty applications in high-traffic areas like driveways, doorways, and warehouse floor drains. Made of durable 12 gauge stainless steel, this plug is suitable for use in areas where heavy machinery may pass over it. With a flush design and a 1/4" gasket, it ensures a secure fit while maintaining a sleek appearance. The plug is 2.0 inches (50.8 mm) in nominal size and complies with industry standards for finishing applications.
Ready to Grow Without Cash Flow Constraints?

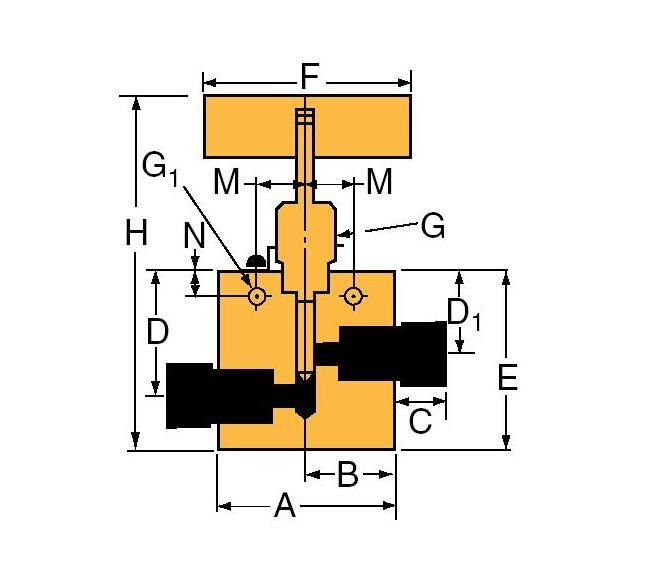

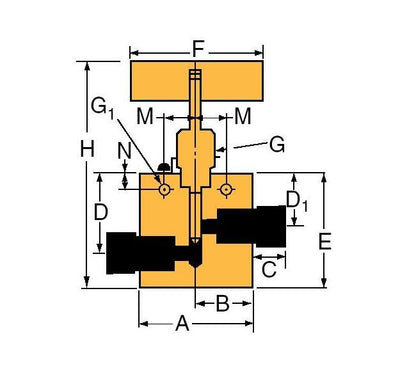

Product Specifications
Specifications A Width
4.12 in | 104.65 mm
Specifications Block Thickness
1.75 in | 44.45 mm
Specifications B Length
2.06 in | 52.32 mm
Specifications Connection Type
SF1000CX10
Specifications C Length
0.63 in | 16.00 mm
Specifications D1 Height
2.81 in | 71.37 mm
Specifications D Height
3.75 in | 95.25 mm
Specifications E Height
4.63 in | 117.6 mm
Specifications F Length
10.25 in | 260.35 mm
Specifications G1 Bracket Mounting Hole Size
0.56 in | 14.22 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.62 in | 41.15 mm
Specifications H Height
9.00 in | 228.84 mm
Specifications M Length
1.25 in | 31.75 mm
Specifications N Height
1.13 in | 28.70 mm
Specifications Orifice Diameter
0.688 in | 17.48 mm
Specifications Outside Diameter Tube
1 in | 25.4 mm
Specifications Pressure Rating At Room Temperature
10000 psi | 690 bar
Specifications Rated Cv
5.20
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
1.38 in | 35.0 mm
Specifications Valve Pattern
2-Way Straight
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R20SM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.Note: Caution should be exercised in proper selection of medium pressure tubing based on actual operating conditions. Two tubing series available in some sizes: 15000 psi (1034 bar) and 20000 psi (1380 bar).
Valve Options 0
Extreme Temperatures Standard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing and/or extended stuffing box are available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number. TG standard valve with Teflon glass packing to 600°F (316°C). GY standard valve with graphite braided yarn packing to 800°F (427°C). Note: 3/4â rated 8000 psi (552 bar) and 1â rated 6000 psi (412 bar) maximum with graphite yarn packing.â HT extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C). B standard valve with cryogenic trim materials and Teflon packing to -100°F (-73°C). LT extended stuffing box valve with Teflon packing and cryogenic trim materials to -423°F (-252°C). â This packing will affect the pressure rating. Refer to Technical Information section.
