Petersen® 143-4 Series Polypropylene End of Pipe Plug 3 Inch
Petersen® 143-4 Series Polypropylene End of Pipe Plug 3 Inch
SKU:HIG-126286
Versatile Petersen® 143-4 Series 3 Inch Polypropylene End of Pipe Plug for reliable pipe sealing and durability.
Regular price
$19.99
Regular price
Sale price
$19.99
Unit price
per
Initiate Order
Petersen® 143-4 Series Polypropylene End of Pipe Plug 3 Inch
$19.99
Quantity: 1
Claim Your Seller Account
Petersen® 143-4 Series Polypropylene End of Pipe Plug 3 Inch
$19.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen® 143-4 Series 3 Inch Polypropylene End of Pipe Plug is a versatile solution for sealing pipes of various materials at nominal sizes. Constructed with high-quality Polypropylene and featuring a durable Natural rubber o-ring, this plug can be used for both temporary and permanent applications. With the option to tap it for use with a cleanout cover, it offers flexibility and convenience. With a maximum allowable back pressure of 13 psi, this plug meets stringent performance standards for reliability and durability.

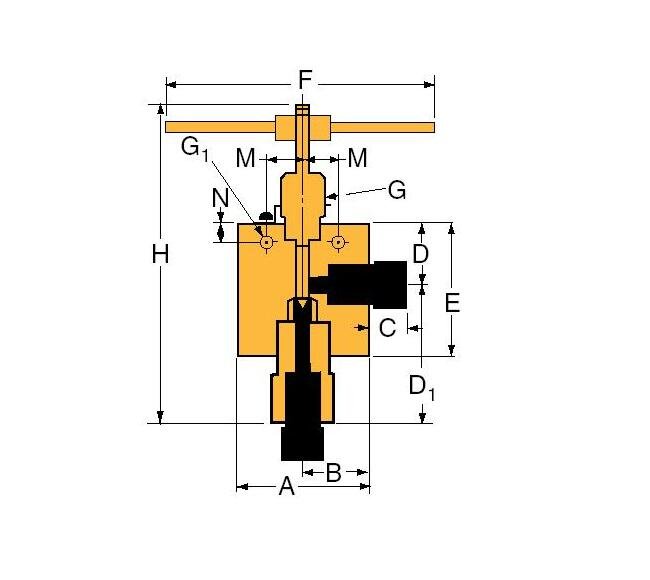

Product Specifications
Specifications A Width
4.13 in | 104.9 mm
Specifications Block Thickness
1.75 in | 44.45 mm
Specifications B Length
2.06 in | 52.32 mm
Specifications Connection Type
F1000C43
Specifications C Length
0.72 in | 18.28 mm
Specifications D1 Height
4.31 in | 109.47 mm
Specifications D Height
2.81 in | 71.37 mm
Specifications E Height
5.12 in | 130.04 mm
Specifications F Length
10.25 in | 260.35 mm
Specifications G1 Bracket Mounting Hole Size
0.56 in | 14.22 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.62 in | 41.14 mm
Specifications H Height
10.56 in | 268.22 mm
Specifications M Length
1.25 in | 31.75 mm
Specifications N Height
1.12 in | 28.44 mm
Specifications Orifice Diameter
0.438 in | 11.12 mm
Specifications Outside Diameter Tube
1 in | 25.4 mm
Specifications Pressure Rating At Room Temperature
30000 psi | 2068 bar
Specifications Rated Cv
2.6
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
1.62 in | 41.1 mm
Specifications Valve Pattern
2-Way Angle / Replaceable Seat
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30SC16071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).8,000 psi (569 bar) max.HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).K - anti-vibration collet and gland assembly.
