The Petersen® 143-5 Series 0.75 Inch Water Line Stub Plug is a high-quality mechanical plug designed for plugging water line stub-outs with precision and reliability. Featuring a durable SBR/Natural rubber o-ring, this plug excels in high-pressure applications, ensuring a secure seal in pipes of various materials. With a nominal diameter of 0.75 inches and a maximum allowable back pressure of 180 psi, this plug is suitable for a wide range of pipe diameters, making it versatile for different plumbing systems. Whether it's for consumer or institutional use, Petersen® delivers a dependable solution for your piping needs.
Product Specifications

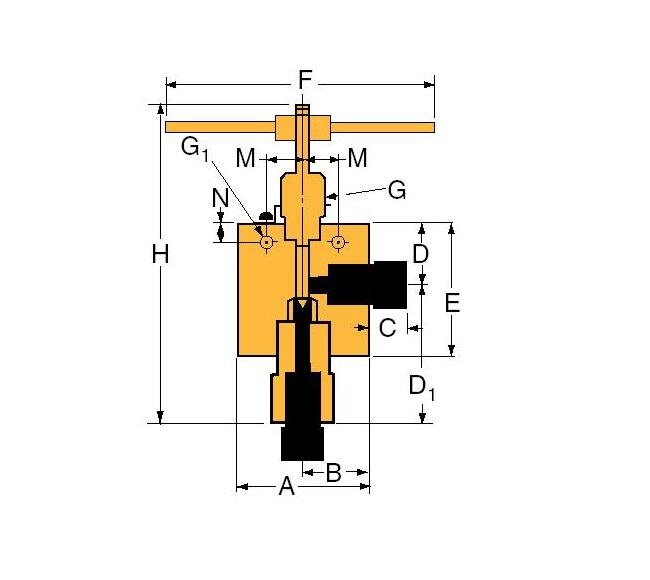

Specifications A Width
4.13 in | 104.9 mm
Specifications Block Thickness
1.75 in | 44.45 mm
Specifications B Length
2.06 in | 52.32 mm
Specifications Connection Type
F1000C43
Specifications C Length
0.72 in | 18.28 mm
Specifications D1 Height
4.31 in | 109.47 mm
Specifications D Height
2.81 in | 71.37 mm
Specifications E Height
5.12 in | 130.04 mm
Specifications F Length
10.25 in | 260.35 mm
Specifications G1 Bracket Mounting Hole Size
0.56 in | 14.22 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.62 in | 41.14 mm
Specifications H Height
10.56 in | 268.22 mm
Specifications M Length
1.25 in | 31.75 mm
Specifications N Height
1.12 in | 28.44 mm
Specifications Orifice Diameter
0.438 in | 11.12 mm
Specifications Outside Diameter Tube
1 in | 25.4 mm
Specifications Pressure Rating At Room Temperature
30000 psi | 2068 bar
Specifications Rated Cv
2.6
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
1.62 in | 41.1 mm
Specifications Valve Pattern
2-Way Angle / Replaceable Seat
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30SC16071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).8,000 psi (569 bar) max.HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).K - anti-vibration collet and gland assembly.
