Petersen® 143-5 Series Water Line Stub Plug 2.5in
Petersen® 143-5 Series Water Line Stub Plug 2.5in
SKU:HIG-0835fb
High-pressure Water Line Stub Plug, 2.5in diameter, Petersen® brand, durable Any Steel construction.
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Initiate Order
Petersen® 143-5 Series Water Line Stub Plug 2.5in
$15.99
Quantity: 1
Claim Your Seller Account
Petersen® 143-5 Series Water Line Stub Plug 2.5in
$15.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen® 143-5 Series Water Line Stub Plug, with a 2.5in nominal diameter, is a robust mechanical plug designed for high pressure applications. Featuring an SBR/Natural rubber o-ring, this plug ensures a secure fit in all types of pipes. Ideal for water line stub-outs, it offers maximum back pressure resistance with a head pressure of 166ft. This plug is constructed from high-quality Any Steel material, ensuring durability and reliability in demanding environments.
Product Specifications

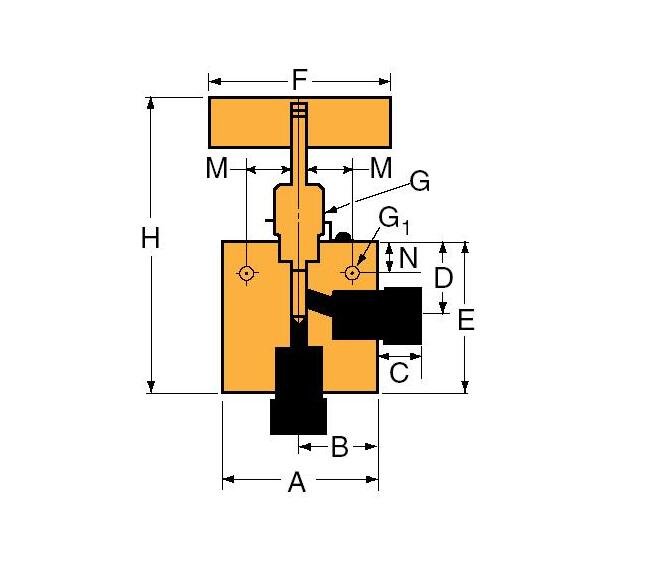

Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
0.75 in | 19.05 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
QS 250
Specifications C Length
0.38 in | 9.53 mm
Specifications D Height
1.19 in | 30.23 mm
Specifications E Height
2.44 in | 61.98 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.75 in | 19.05 mm
Specifications H Height
4.81 in | 122.17 mm
Specifications M Length
0.62 in | 15.75 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.125 in | 3.18 mm
Specifications Outside Diameter Tube
1/4 in | 6.35 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 10342 bar
Specifications Rated Cv
0.31
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.55 in | 14.0 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R15QS4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C).High temperature packing and/or extended stuffing box are available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.â TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 650°F (343°C).â Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.
