Petersen® 143-5 Series Water Line Stub Plug, 4 Inch Nominal Diameter
Petersen® 143-5 Series Water Line Stub Plug, 4 Inch Nominal Diameter
SKU:HIG-2014a3
Ideal for high-pressure water line stub-outs, Petersen® 143-5 Series Plug offers secure sealing with hex nut design. Sizes 1.5"-5", SBR/Natural rubber o-ring, and fits all pipe types.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Petersen® 143-5 Series Water Line Stub Plug, 4 Inch Nominal Diameter
$29.99
Quantity: 1
Claim Your Seller Account
Petersen® 143-5 Series Water Line Stub Plug, 4 Inch Nominal Diameter
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen® 143-5 Series Water Line Stub Plug is a reliable solution designed for high-pressure applications. Featuring an SBR/Natural rubber o-ring, this plug fits all types of pipes and is ideal for water line stub-outs. With a hex nut for sizes 1.5" to 5", it ensures secure sealing. Measuring 3.7 inches in diameter and constructed from high-quality steel, this plug can withstand significant head pressure up to 55 ft. Ensure leak-proof performance with this durable, versatile plug.

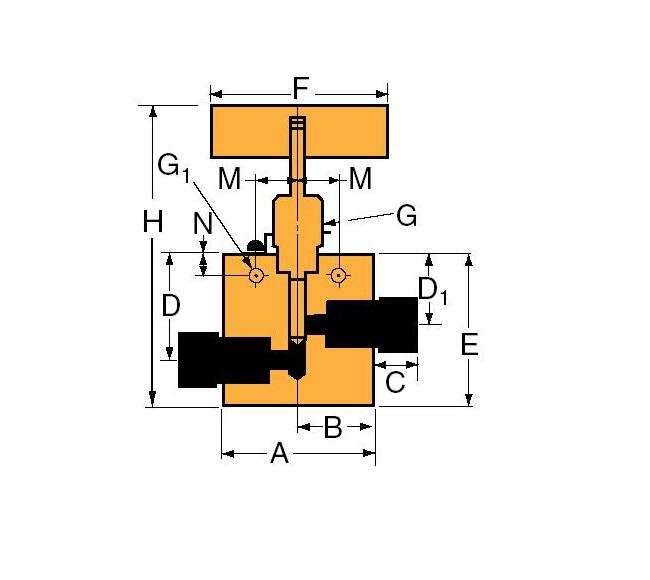

Product Specifications
Specifications A Width
4.12 in | 104.65 mm
Specifications Block Thickness
1.50 in | 38.10 mm
Specifications B Length
2.06 in | 52.32 mm
Specifications Connection Type
QS 750
Specifications C Length
0.62 in | 15.75 mm
Specifications D1 Height
2.25 in | 57.15 mm
Specifications D Height
3.00 in | 76.20 mm
Specifications E Height
3.88 in | 98.43 mm
Specifications F Length
10.25 in | 260.35 mm
Specifications G1 Bracket Mounting Hole Size
0.44 in | 11.18 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.12 in | 28.45 mm
Specifications H Height
7.13 in | 180.98 mm
Specifications M Length
0.88 in | 22.35 mm
Specifications N Height
0.63 in | 16.00 mm
Specifications Orifice Diameter
0.516 in | 13.11 mm
Specifications Outside Diameter Tube
3/4 in | 19.05 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 10342 bar
Specifications Rated Cv
5.20
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
1.00 in | 25.4 mm
Specifications Valve Pattern
2-Way Straight
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R15QS4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C).High temperature packing and/or extended stuffing box are available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.â TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 650°F (343°C).â Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.
