Petersen® 144-1 Series 4 Inch ABS Wing Nut Plug
Petersen® 144-1 Series 4 Inch ABS Wing Nut Plug
SKU:HIG-408ea9
Durable 4-inch ABS Wing Nut Plug for secure end of pipe sealing during DWV testing. Easy to install with rust-resistant wing nut. Neoprene rubber o-ring and galvanized bolt prevent corrosion.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Petersen® 144-1 Series 4 Inch ABS Wing Nut Plug
$29.99
Quantity: 1
Claim Your Seller Account
Petersen® 144-1 Series 4 Inch ABS Wing Nut Plug
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen® 144-1 Series 4 Inch ABS Wing Nut Plug is a durable solution designed for DWV testing and stack testing applications. Crafted from high impact ABS material, this plug features an end of pipe design that ensures a secure seal without falling into the pipe. The easy-to-install extra-large zinc wing nut resists rust, while the neoprene rubber o-ring and galvanized carriage bolt prevent corrosion. With a nominal size of 4 inches and a maximum back pressure capacity of 5 psi, this plug offers reliability and longevity for sewer testing and other long-term applications.

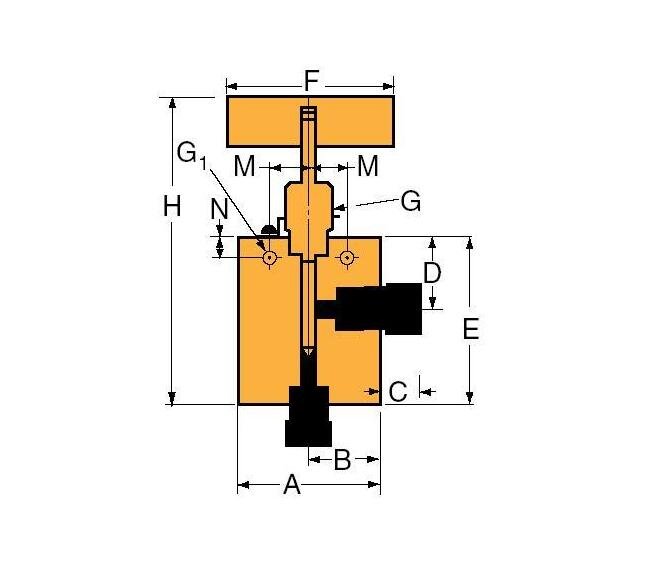

Product Specifications
Specifications A Width
2.62 in | 66.55 mm
Specifications Block Thickness
1.50 in | 38.10 mm
Specifications B Length
1.31 in | 33.27 mm
Specifications Connection Type
F562C
Specifications C Length
0.81 in | 20.57 mm
Specifications D Height
1.12 in | 28.45 mm
Specifications E Height
2.44 in | 61.98 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.28 in | 7.11 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
5.06 in | 128.52 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.125 in | 3.18 mm
Specifications Outside Diameter Tube
9/16 in | 14.29 mm
Specifications Pressure Rating At Room Temperature
30000 psi | 2068 bar
Specifications Rated Cv
0.33
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.87 in | 22.0 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).
