Petersen® 145-9 Series Mechanical High Pressure Test Plug
Petersen® 145-9 Series Mechanical High Pressure Test Plug
SKU:HIG-6cfe1b
Versatile Petersen® Mechanical High Pressure Test Plug with solid rubber or inflatable seals, lightweight aluminum, and 100 psig maximum head pressure.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Petersen® 145-9 Series Mechanical High Pressure Test Plug
$249.99
Quantity: 1
Claim Your Seller Account
Petersen® 145-9 Series Mechanical High Pressure Test Plug
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen® 145-9 Series 23.875 Inch Mechanical High Pressure Test Plug is a versatile solution designed for various applications, from force and water mains to special plant situations. It features solid rubber or inflatable seals, lightweight aluminum construction, and a positive seal against line pressure. With a maximum head pressure of 100 psig, this plug offers reliability and ease of installation, suitable for testing and construction projects where isolation is crucial. Compliant with rigorous standards, this plug ensures efficient performance and durability in diverse settings.
Product Specifications

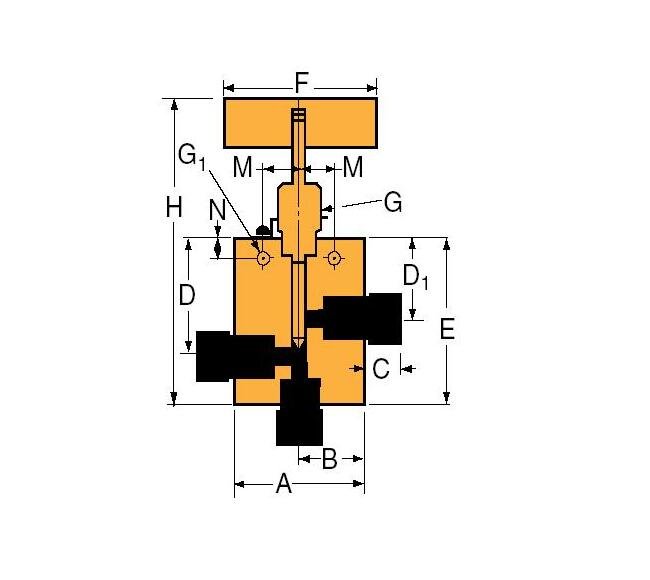

Specifications A Width
3.00 in | 76.20 mm
Specifications Block Thickness
1.38 in | 35.05 mm
Specifications B Length
1.50 in | 38.10 mm
Specifications Connection Type
F312C150
Specifications C Length
0.52 in | 13.21 mm
Specifications D1 Height
1.44 in | 36.58 mm
Specifications D Height
1.75 in | 44.45 mm
Specifications E Height
3.25 in | 82.55 mm
Specifications F Length
4.00 in | 101.60 mm
Specifications G1 Bracket Mounting Hole Size
0.34 in | 8.64 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.12 in | 28.45 mm
Specifications H Height
6.31 in | 160.27 mm
Specifications M Length
1.12 in | 28.45 mm
Specifications N Height
0.50 in | 12.70 mm
Specifications Orifice Diameter
0.062 in | 1.57 mm
Specifications Outside Diameter Tube
3/8 in | 9.53 mm
Specifications Pressure Rating At Room Temperature
100000 psi | 6895 bar
Specifications Rated Cv
0.09
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
1.10 in | 28.0 mm
Specifications Valve Pattern
3-Way / 2 on Pressure
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R100VM15071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard AE valves with Teflon packing may be operated to 450°F(232°C), and to 230°F (110°C) with nylon-leather packing.K - anti-vibration collet and gland assembly. For other packing options consult the factory.
