Petersen® 145-9 Series Mechanical High Pressure Test Plug - 30.875 Inch
Petersen® 145-9 Series Mechanical High Pressure Test Plug - 30.875 Inch
SKU:HIG-9d7102
Securely seal pipes up to 30.875 inches with the Petersen® 145-9 High Pressure Test Plug. Easy to install, lightweight, and pressure-tested for reliability.
Regular price
$369.99
Regular price
Sale price
$369.99
Unit price
per
Initiate Order
Petersen® 145-9 Series Mechanical High Pressure Test Plug - 30.875 Inch
$369.99
Quantity: 1
Claim Your Seller Account
Petersen® 145-9 Series Mechanical High Pressure Test Plug - 30.875 Inch
$369.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen® 145-9 Series Mechanical High Pressure Test Plug is designed for maximum pipe sizes of up to 30.875 inches, providing a secure and reliable seal against line pressures up to 100 psig. This plug features easy installation, replaceable seals, lightweight aluminum construction, and the ability to be tailored for various pressure requirements. Ideal for force mains, water mains, lift stations, fire protection lines, and more, this plug ensures effective isolation for testing and construction needs while meeting stringent industry standards.

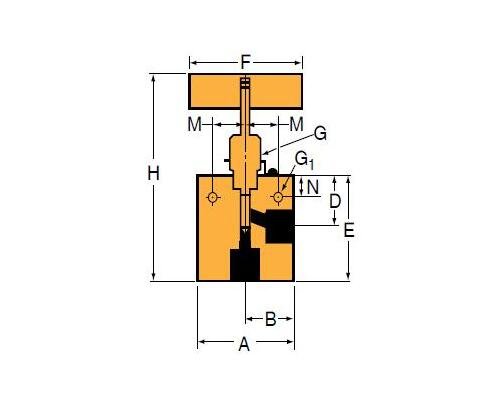

Product Specifications
Specifications A Width
4.12 in | 104.65 mm
Specifications Block Thickness
1.75 in | 44.45 mm
Specifications B Length
2.06 in | 52.32 mm
Specifications Connection Type
Pipe
Specifications D Height
3.31 in | 84.07 mm
Specifications E Height
5.12 in | 130.05 mm
Specifications F Length
10.25 in | 260.35 mm
Specifications G1 Bracket Mounting Hole Size
0.56 in | 14.22 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.62 in | 41.15 mm
Specifications H Height
9.00 in | 228.60 mm
Specifications M Length
1.25 in | 31.75 mm
Specifications N Height
1.13 in | 28.70 mm
Specifications Orifice Diameter
0.562 in | 14.27 mm
Specifications Pipe Size
1 in | 25.4 mm
Specifications Pressure Rating At Room Temperature
10000 psi | 690 bar
Specifications Rated Cv
4.40
Specifications Stem Type
REG
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add âRâ to the front of valve catalog number for proper repair kit. (Example: R15P4071 or R10P12071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C).High temperature packing and/or extended stuffing box are available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.â TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 650°F (343°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).â Autoclave Engineers does not recommend pipe connections below 0°F (-17.8°C) or above 400°F (204°C). For additional valve options, contact your Sales Representative.
