Petersen® 145 PSI Pressure Inflation Controller with Relief Valve
Petersen® 145 PSI Pressure Inflation Controller with Relief Valve
SKU:HIG-6d3f49
Control inflation precisely with the Petersen® 145 PSI Pressure Inflation Controller, equipped with relief valve & gauge.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Petersen® 145 PSI Pressure Inflation Controller with Relief Valve
$89.99
Quantity: 1
Claim Your Seller Account
Petersen® 145 PSI Pressure Inflation Controller with Relief Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen® 145 PSI Pressure Inflation Controller is a robust solution designed for precise pressure management in demanding environments. Featuring a built-in relief valve, gauge, and ball valve, this controller ensures accurate inflation control up to 145 psi. Crafted with industry-grade materials, it is compatible with 161-5 Series High Pressure Heavy Duty Bags, making it ideal for industrial applications requiring exact pressure adjustments. Trust in Petersen® for reliability and performance, meeting the stringent standards of federal procurement regulations and ensuring long-lasting durability.

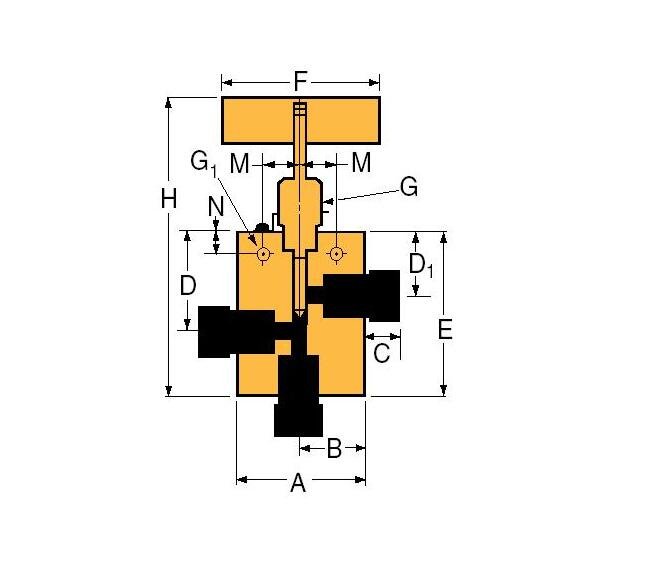

Product Specifications
Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
0.75 in | 19.05 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
SW250
Specifications C Length
0.38 in | 9.65 mm
Specifications D1 Height
1.19 in | 30.23 mm
Specifications D Height
1.62 in | 41.15 mm
Specifications E Height
2.62 in | 66.55 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.75 in | 19.05 mm
Specifications H Height
5.94 in | 150.88 mm
Specifications M Length
0.62 in | 15.75 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.187 in | 4.75 mm
Specifications Outside Diameter Tube
1/4 in | 6.35 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
0.65
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.69 in | 17.5 mm
Specifications Valve Pattern
3-Way / 2 on Pressure
Valve Maintenance Valve Maintenance
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: RSW4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options Valve Options
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing and/or extended stuffing box is available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.â TG standard valve with Teflon glass packing to 600°F (316°C).GY standard valve with graphite braided yarn packing to 650°F (343°C).â Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.
