Petersen® 146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass
Petersen® 146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass
SKU:HIG-d9f369
Reliable testing solution with Nitrile seals, customizable for various applications.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Petersen® 146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass
$79.99
Quantity: 1
Claim Your Seller Account
Petersen® 146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen® 146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass is designed for simple and reliable testing of pipelines. Featuring Nitrile seals for hydrocarbon resistance, these plugs are suitable for pipe sizes ranging from 1.13 inches to 1.26 inches. With a rated pressure of 200 psig and an overall length of 8 inches, these plugs ensure secure testing without tube wall damage. Customizable with various seal materials, these plugs are versatile for different pressure, temperature, and chemical requirements.

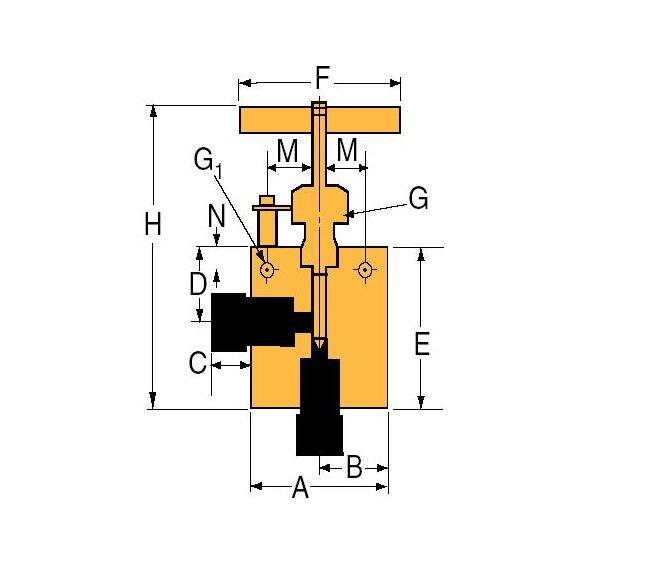

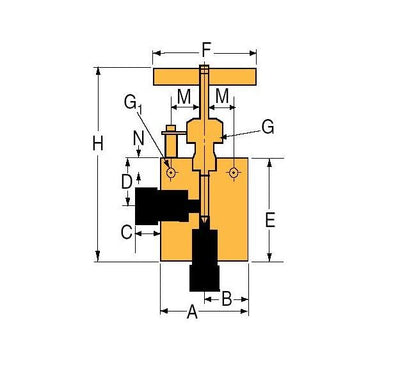

Product Specifications
Specifications A Width
1.38 in | 34.93 mm
Specifications Block Thickness
0.56 in | 14.27 mm
Specifications B Length
0.69 in | 17.45 mm
Specifications Connection Type
W062
Specifications C Length
0.45 in | 11.43 mm
Specifications D Height
0.56 in | 14.3 mm
Specifications E Height
1.38 in | 34.93 mm
Specifications F Length
1.75 in | 44.45 mm
Specifications G1 Bracket Mounting Hole Size
0.16 in | 4.04 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.56 in | 14.27 mm
Specifications H Height
2.63 in | 66.75 mm
Specifications M Length
0.45 in | 11.49 mm
Specifications N Height
0.20 in | 5.16 mm
Specifications Orifice Diameter
0.055 in | 1.40 mm
Specifications Outside Diameter Tube
1/16 in | 1.57 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
0.05
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.47 in | 11.9 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C).High temperature packing is available for service from 0°F (-17.8°C) to 600°F (316°C) by adding the following suffixes to catalog order number.â TG standard valve with Teflon glass packing to 600°F (316°C).â Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.
