Petersen® 146-9 Series Bolt Type Test Plug with By-Pass
Petersen® 146-9 Series Bolt Type Test Plug with By-Pass
SKU:HIG-06dc20
Reliable Petersen® 146-9 Series Bolt Type Test Plug for secure pipeline testing up to 250 psig. Nitrile seal for hydrocarbon resistance.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Petersen® 146-9 Series Bolt Type Test Plug with By-Pass
$189.99
Quantity: 1
Claim Your Seller Account
Petersen® 146-9 Series Bolt Type Test Plug with By-Pass
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen® 146-9 Series Bolt Type Test Plug with By-Pass is designed for reliable testing of pipelines without causing damage. With a Nitrile seal for hydrocarbon resistance, this test plug features a range of configurations to meet various requirements. Made with plated carbon steel, it ensures secure testing up to 250 psig (17 bar). Simply tighten the compression nut to expand the seal element, install it into the pipe or tubing, and initiate testing with confidence.
Product Specifications

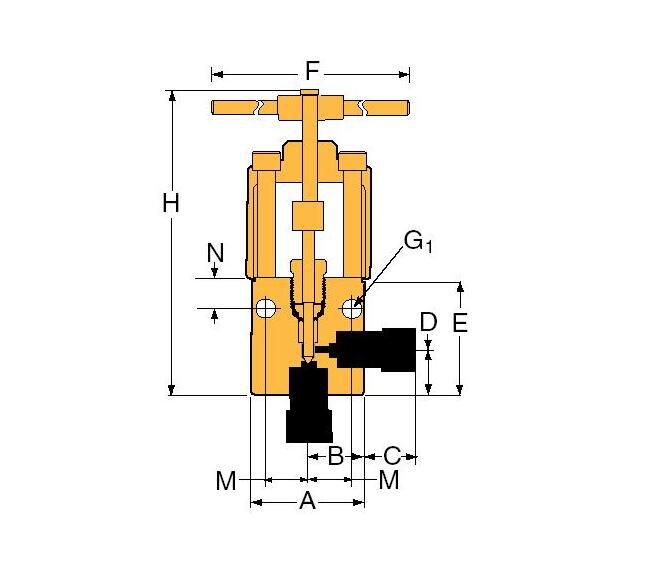

Specifications A Width
3.00 in | 76.20 mm
Specifications Block Thickness
1.38 in | 34.93 mm
Specifications B Length
1.50 in | 38.10 mm
Specifications Connection Type
SF750CX
Specifications C Length
0.63 in | 15.88 mm
Specifications D Height
1.75 in | 44.45 mm
Specifications E Height
3.75 in | 95.25 mm
Specifications F Length
8.00 in | 203.20 mm
Specifications G1 Diameter
0.28 in | 7.11 mm
Specifications H Height
9.63 in | 244.48 mm
Specifications M Length
1.13 in | 28.58 mm
Specifications N Height
0.88 in | 22.23 mm
Specifications Orifice Diameter
0.438 in | 11.13 mm
Specifications Outside Diameter Tube
3/4 in | 19.05 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
2.41
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
1.00 in | 25.4 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R50Y9071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing is available for service from 0°F (-17.8°C) to 600°F (316°C) by adding the following suffixes to catalog order number.TG standard valve with Teflon glass packing to 600°F (316°C).B standard valve with cryogenic trim materials and Teflon packing to -100°F (-73°C).
