Petersen® 146-9 Series Medium Pressure Test Plug with By-Pass
Petersen® 146-9 Series Medium Pressure Test Plug with By-Pass
SKU:HIG-75299d
Petersen® 146-9 Series Test Plug: Reliable, high-pressure testing solution with Nitrile seal. Customizable for diverse requirements.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Petersen® 146-9 Series Medium Pressure Test Plug with By-Pass
$89.99
Quantity: 1
Claim Your Seller Account
Petersen® 146-9 Series Medium Pressure Test Plug with By-Pass
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen® 146-9 Series Bolt Type Test Plug is designed for convenient and reliable testing of pipelines with a minimum inside diameter of 0.69 inches. Rated for pressures up to 250 psig, this plug features a Nitrile seal for optimal hydrocarbon resistance and minimal tube wall damage. With a National Pipe Thread (NPT) by-pass connection and customizable configurations for various size, pressure, and material requirements, this plug ensures easy installation and secure testing procedures. Safety warnings and compliance with industry standards make this plug a trusted choice for institutional and government procurement needs.
Product Specifications

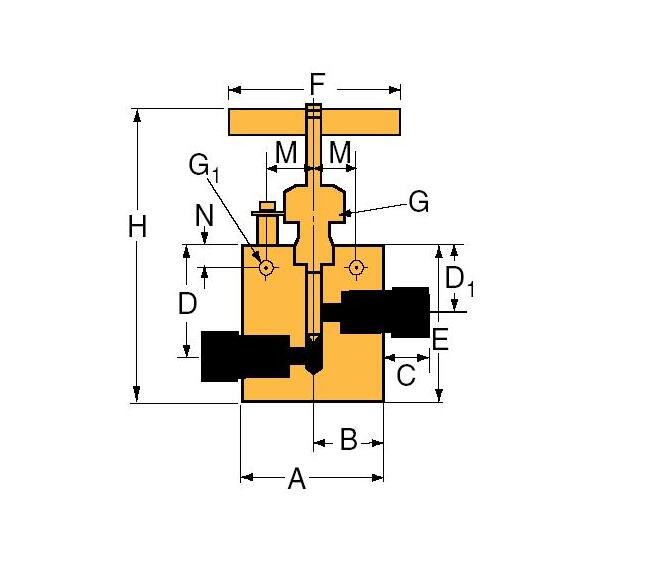

Specifications A Width
1.38 in | 34.93 mm
Specifications Block Thickness
0.56 in | 14.27 mm
Specifications B Length
0.69 in | 17.45 mm
Specifications Connection Type
W062
Specifications C Length
0.45 in | 11.43 mm
Specifications D1 Height
0.56 in | 14.30 mm
Specifications D Height
0.81 in | 20.65 mm
Specifications E Height
1.13 in | 28.58 mm
Specifications F Length
1.75 in | 44.45 mm
Specifications G1 Bracket Mounting Hole Size
0.16 in | 4.04 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.56 in | 14.27 mm
Specifications H Height
2.38 in | 60.38 mm
Specifications M Length
0.45 in | 11.49 mm
Specifications N Height
0.20 in | 5.16 mm
Specifications Orifice Diameter
0.055 in | 1.40 mm
Specifications Outside Diameter Tube
1/16 in | 1.57 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
0.05
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.47 in | 11.9 mm
Specifications Valve Pattern
2-Way Straight
Valve Maintenance 0
Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C).High temperature packing is available for service from 0°F (-17.8°C) to 600°F (316°C) by adding the following suffixes to catalog order number.â TG standard valve with Teflon glass packing to 600°F (316°C).â Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.
