Petersen® 146-9 Series Medium Pressure Test Plug with By-Pass
Petersen® 146-9 Series Medium Pressure Test Plug with By-Pass
SKU:HIG-75a42b
Reliable testing of pipelines up to 250 psig with Nitrile seal for secure sealing. Durable plated carbon steel construction for long-lasting performance.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Petersen® 146-9 Series Medium Pressure Test Plug with By-Pass
$129.99
Quantity: 1
Claim Your Seller Account
Petersen® 146-9 Series Medium Pressure Test Plug with By-Pass
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen® 146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass is designed for simple and reliable testing of pipelines up to 250 psig without causing damage. With a Nitrile seal for optimal performance and available in various custom configurations, this plug ensures secure sealing and easy installation. Made with plated carbon steel, it offers durability and robust performance for a wide range of applications.
Product Specifications

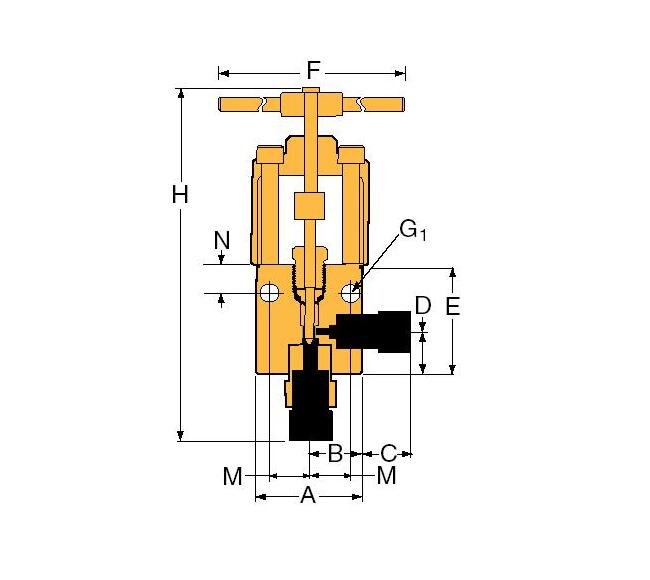

Specifications A Width
4.13 in | 104.78 mm
Specifications Block Thickness
1.75 in | 44.45 mm
Specifications B Length
2.06 in | 52.39 mm
Specifications Connection Type
SF1000CX
Specifications C Length
0.63 in | 15.88 mm
Specifications D Height
2.06 in | 52.32 mm
Specifications E Height
4.13 in | 104.78 mm
Specifications F Length
10.25 in | 260.35 mm
Specifications G1 Diameter
0.28 in | 7.11 mm
Specifications H Height
11.75 in | 298.45 mm
Specifications M Length
1.50 in | 38.10 mm
Specifications N Height
1.03 in | 26.16 mm
Specifications Orifice Diameter
0.562 in | 14.27 mm
Specifications Outside Diameter Tube
1 in | 25.4 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
3.15
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
1.38 in | 35.0 mm
Specifications Valve Pattern
2-Way Angle / Replaceable Seat
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R50Y9071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing is available for service from 0°F (-17.8°C) to 600°F (316°C) by adding the following suffixes to catalog order number.TG standard valve with Teflon glass packing to 600°F (316°C).B standard valve with cryogenic trim materials and Teflon packing to -100°F (-73°C).
