The Petersen® 147 Series Bolt Type High Pressure Test Plug is designed for pipes with a 5-inch nominal size schedule 120. With a maximum test pressure of 5500 psig, this plug offers a secure seal using Neoprene standard seal material. Ideal for various applications including force and water mains, lift stations, and fire protection lines, it ensures reliable performance and safety compliance. The plug comes with a mechanical warning for maximum head pressures and optional high pressure caps for added versatility.

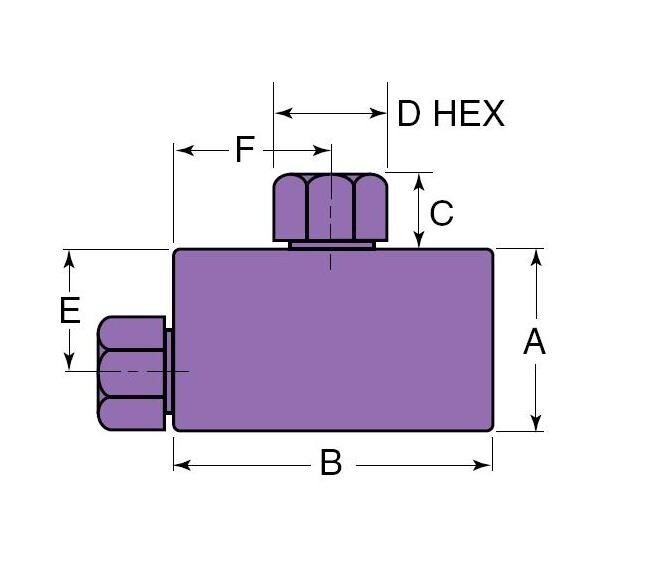

Product Specifications
Specifications A Height
1.75 in | 44.45 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Width
2.50 in | 63.50 mm
Specifications Connection Type
SW500
Specifications C Height
0.53 in | 13.46 mm
Specifications D Hex
0.93 in | 23.62 mm
Specifications E Length
1.25 in | 31.75 mm
Specifications F Length
1.25 in | 31.75 mm
Specifications Minimum Opening
0.375 in | 9.53 mm
Specifications Outside Diameter Tube
12.70 mm | 1/2 in
Specifications Pressure Rating
10000 psi | 689.46 bar
Specifications Tubing Engagement Depth
0.81 in | 20.6 mm
