Petersen® 148-0 Series EZ-Swet 0.5in Mechanical Line Stopper Plug
Petersen® 148-0 Series EZ-Swet 0.5in Mechanical Line Stopper Plug
SKU:HIG-c43b76
Efficient 0.5in Mechanical Line Stopper Plug for quick pipe repairs without draining. Maximum 60 psig water pressure, ideal for various installations.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Petersen® 148-0 Series EZ-Swet 0.5in Mechanical Line Stopper Plug
$39.99
Quantity: 1
Claim Your Seller Account
Petersen® 148-0 Series EZ-Swet 0.5in Mechanical Line Stopper Plug
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen® 148-0 Series EZ-Swet Mechanical Line Stopper Plug is a top-of-the-line solution for repairs without having to drain the entire water system. Featuring a 0.5in pipe diameter and a 6.38in handle length, this plug is designed for efficiency and convenience. With a molded silicone/epdm composite rubber seal, this plug offers immediate control of the water system, allowing for quick pipe repairs without waiting for complete drainage. Ideal for service in hotels, motels, apartments, and more, this plug can handle a maximum water pressure of 60 psig. It is cleaner, more controllable, and ensures a quicker repair on any system.

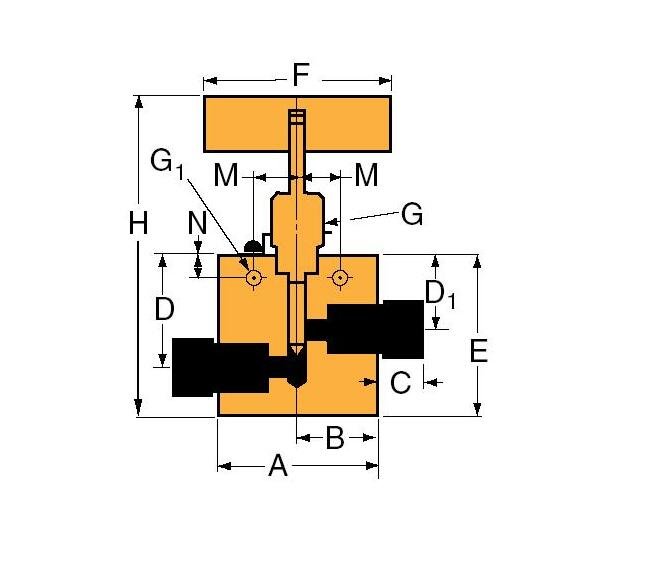

Product Specifications
Specifications A Width
2.62 in | 66.55 mm
Specifications Block Thickness
1.50 in | 38.10 mm
Specifications B Length
1.31 in | 33.27 mm
Specifications Connection Type
F562C
Specifications C Length
0.72 in | 18.29 mm
Specifications D1 Height
1.31 in | 33.27 mm
Specifications D Height
1.75 in | 45.45 mm
Specifications E Height
2.50 in | 63.50 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.28 in | 7.11 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
5.13 in | 130.30 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.078 in | 1.98 mm
Specifications Outside Diameter Tube
9/16 in | 14.29 mm
Specifications Pressure Rating At Room Temperature
60000 psi | 4137 bar
Specifications Rated Cv
0.14
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.87 in | 22.0 mm
Specifications Valve Pattern
2-Way Straight
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R60VM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).
