Petersen® 148-3 Series Remote Placement Expander Plug
Petersen® 148-3 Series Remote Placement Expander Plug
SKU:HIG-eb398a
Reliable Petersen® 148-3 Series Expander Plug for industrial pipeline maintenance needs. Nitrile rubber seal, efficient installation, and removal.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Petersen® 148-3 Series Remote Placement Expander Plug
$25.99
Quantity: 1
Claim Your Seller Account
Petersen® 148-3 Series Remote Placement Expander Plug
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen® 148-3 Series 0.57 Inch Diameter Remote Placement Expander Plug is designed for diverse industrial applications such as blocking pipelines against tampering, testing for leakage, and regulating intermediate pressures. Featuring a Nitrile rubber seal, this plug offers easy installation and removal with clear instructions provided. Not pressure rated, but offers versatile utility. Ensure precise pipeline maintenance with this reliable and efficient expander plug.

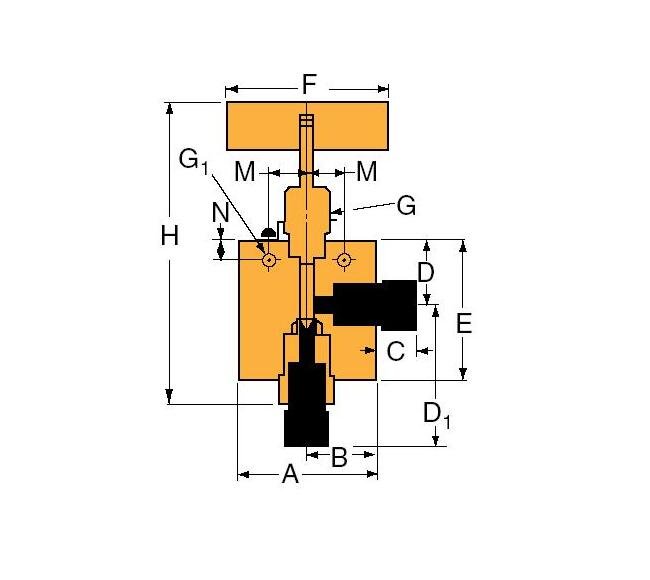

Product Specifications
Specifications A Width
2.62 in | 66.55 mm
Specifications Block Thickness
1.50 in | 38.10 mm
Specifications B Length
1.31 in | 33.27 mm
Specifications Connection Type
F562C
Specifications C Length
0.81 in | 20.57 mm
Specifications D1 Height
2.62 in | 66.55 mm
Specifications D Height
1.12 in | 28.45 mm
Specifications E Height
2.44 in | 61.98 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.28 in | 7.11 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
6.45 in | 163.83 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.125 in | 3.18 mm
Specifications Outside Diameter Tube
9/16 in | 14.29 mm
Specifications Pressure Rating At Room Temperature
30000 psi | 2068 bar
Specifications Rated Cv
0.33
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.87 in | 22.0 mm
Specifications Valve Pattern
2-Way Angle / Replaceable Seat
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).
