Petersen® 154 Series 16 Inch Gas Plug Bag
Petersen® 154 Series 16 Inch Gas Plug Bag
SKU:COP-3a7f84
High-quality spare/replacement 16 in Gas Plug Bag for reliable pipeline plugging. Durable Polyester cover with nitrile bladder ensures snug fit and shut-off. Ideal for consumer and institutional use.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Petersen® 154 Series 16 Inch Gas Plug Bag
$29.99
Quantity: 1
Claim Your Seller Account
Petersen® 154 Series 16 Inch Gas Plug Bag
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen® 154 Series Gas Plug Bag is expertly crafted with a high-quality nitrile bladder encased in a durable 100% Polyester fabric cover, ensuring a tight fit and reliable shut-off. Each bag includes an inflation valve for easy use. With a deflated diameter perfect for plugging pipelines, this spare or replacement bag is designed to meet the needs of both consumer and institutional buyers.
Product Specifications

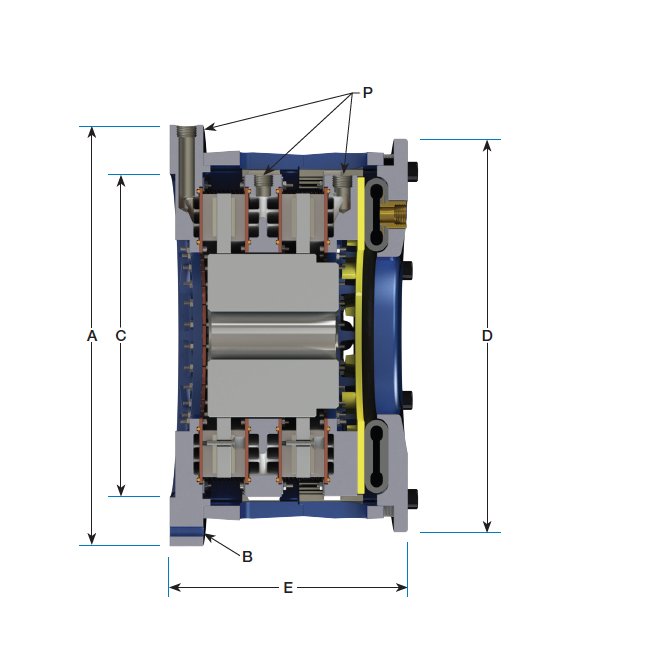

Dimensions Diameter B
21/32 in | 16.7 mm
Dimensions Dimension A
30.000 in | 762.00 mm
Dimensions Dimension A Tolerance
+0.000 in | -0.003 in | +0.00 mm | -0.08 mm
Dimensions Dimension C
24.375 in | 619.13 mm
Dimensions Dimension C Tolerance
+0.003 in | -0.000 in | +0.08 mm | -0.00 mm
Dimensions Dimension D
29 in | 736.6 mm
Dimensions Dimension E
18-3/8 in | 466.3 mm
Dimensions Hole Circle B
28.75 in | 730.3 mm
Dimensions Maximum Bore Range
8.00 in | 203.2 mm
Dimensions Minimum Bore Range
2.13 in | 54.0 mm
Dimensions Quantity
10
Dimensions Thread Size P
3/4
Dimensions Thread Type
National Pipe Thread (NPT)
Features Features
O-ring water jacket design for same-day field serviceNo outboard support requiredStandardized mounting for OEM applications, rebuilds, or retrofitsThe actuator is naturally corrosion resistantLegacy service parts available for additional sizes
Note Note
Contact WPT® Power for final selection, product flexibility, application guidance and approval. Certified prints available on request. Dimensions and Specifications are considered as reference only and subject to change.
Specifications High Coefficient Pneumatic Torque Rating At 100 P
367000 lbf·in | 41500 N·m
Specifications Hub And Drive Plate Dp Inertia
1100 lb·ft² | 47 kg·m²
Specifications Hub And Drive Plate Dp Weight
1100 lb | 500 kg
Specifications Maximum Free Wheel Speed
1610 rpm
Specifications Maximum Slip Speed
1070 rpm
Specifications Medium Coefficient Pneumatic Torque Rating At 100
237000 lbf·in | 26800 N·m
Specifications Minimum Freshwater Flow
87 gpm | 318 L/min
Specifications Note For Heat Dissipation Capacity And Minimum Fr
Rated heat dissipation requires a freshwater flowrate of 1 gpm for every 10 hp (one liter per minute for every 2 kW) and are based upon a 50°F (28°C) temperature rise between the inlet and outlet. The outlet water temperature should not exceed 170°F (77°C). Maximum inlet water pressure is 60 psi (4.1 bar). Ethylene Glycol is the recommended coolant additive. At 50% concentration in water, the required flowrate is 1.5 times the freshwater flowrate, due to the reduced specific heat of the solution.
Specifications Note For Pneumatic Torque Rating At 100 Pound Per
Pneumatic Max Actuator Pressure: 130 psi (9 bar) All sizesTorque is directly proportional to the actuator pressure appliedLow Coefficient and Extra-High Coefficient Friction Material offerings are available.
Specifications Parallel Piping Heat Dissipation Capacity
855 hp | 638 kW
Specifications Series Piping Heat Dissipation Capacity
570 hp | 425 kW
Specifications Total Weight
1600 lb | 700 kg
