Petersen® 154 Series 36" Low Pressure Gas Plug
Petersen® 154 Series 36" Low Pressure Gas Plug
SKU:COP-6e75ba
Reliable 36" Low Pressure Gas Plug for pipeline testing and maintenance. Durable construction with maximum 3 psig inflation pressure.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Petersen® 154 Series 36" Low Pressure Gas Plug
$299.99
Quantity: 1
Claim Your Seller Account
Petersen® 154 Series 36" Low Pressure Gas Plug
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen® 154 Series 36-inch Low Pressure Gas Plug is expertly crafted with a high-quality nitrile inner bladder encased in 100% Polyester fabric, ensuring a secure fit and efficient shut-off when inflated. Designed for pipeline testing and maintenance, this plug features a standard inflation valve, with optional pressure gauge for precise monitoring. With a durable construction and maximum inflation pressure of 3 psig, this plug guarantees reliable performance without compromising safety or efficiency.

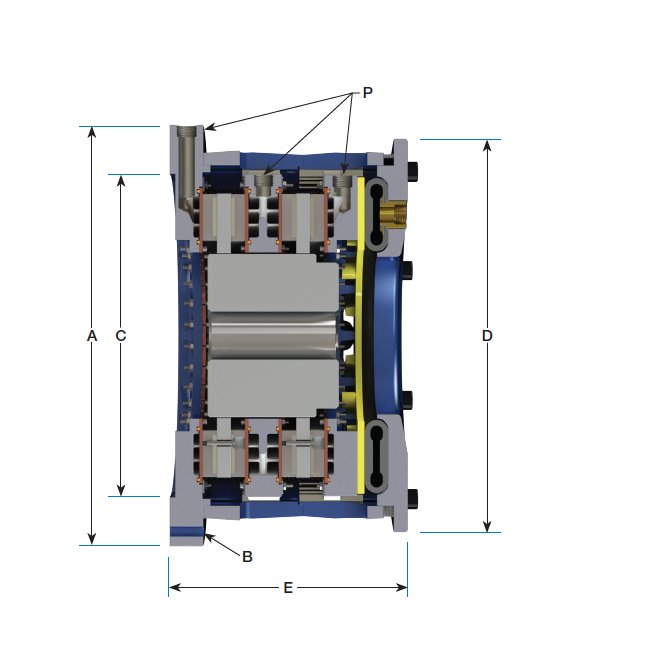

Product Specifications
Dimensions Diameter B
21/32 in | 16.7 mm
Dimensions Dimension A
30.000 in | 762.00 mm
Dimensions Dimension A Tolerance
+0.000 in | -0.003 in | +0.00 mm | -0.08 mm
Dimensions Dimension C
24.375 in | 619.13 mm
Dimensions Dimension C Tolerance
+0.003 in | -0.000 in | +0.08 mm | -0.00 mm
Dimensions Dimension D
29 in | 736.6 mm
Dimensions Dimension E
9 in | 228.2 mm
Dimensions Hole Circle B
28.75 in | 730.3 mm
Dimensions Maximum Bore Range
8.00 in | 203.2 mm
Dimensions Minimum Bore Range
2.13 in | 54.0 mm
Dimensions Quantity
10
Dimensions Thread Size P
3/4
Dimensions Thread Type
National Pipe Thread (NPT)
Features Features
O-ring water jacket design for same-day field serviceNo outboard support requiredStandardized mounting for OEM applications, rebuilds, or retrofitsThe actuator is naturally corrosion resistantLegacy service parts available for additional sizes
Note Note
Contact WPT® Power for final selection, product flexibility, application guidance and approval. Certified prints available on request. Dimensions and Specifications are considered as reference only and subject to change.
Specifications High Coefficient Pneumatic Torque Rating At 100 P
122000 lbf·in | 13800 N·m
Specifications Hub And Drive Plate Dp Inertia
370 lb·ft² | 16 kg·m²
Specifications Hub And Drive Plate Dp Weight
310 lb | 140 kg
Specifications Maximum Free Wheel Speed
1610 rpm
Specifications Maximum Slip Speed
1070 rpm
Specifications Medium Coefficient Pneumatic Torque Rating At 100
79200 lbf·in | 8940 N·m
Specifications Minimum Freshwater Flow
29 gpm | 106 L/min
Specifications Note For Heat Dissipation Capacity And Minimum Fr
Rated heat dissipation requires a freshwater flowrate of 1 gpm for every 10 hp (one liter per minute for every 2 kW) and are based upon a 50°F (28°C) temperature rise between the inlet and outlet. The outlet water temperature should not exceed 170°F (77°C). Maximum inlet water pressure is 60 psi (4.1 bar). Ethylene Glycol is the recommended coolant additive. At 50% concentration in water, the required flowrate is 1.5 times the freshwater flowrate, due to the reduced specific heat of the solution.
Specifications Note For Pneumatic Torque Rating At 100 Pound Per
Pneumatic Max Actuator Pressure: 130 psi (9 bar) All sizesTorque is directly proportional to the actuator pressure appliedLow Coefficient and Extra-High Coefficient Friction Material offerings are available.
Specifications Parallel Piping Heat Dissipation Capacity
285 hp | 213 kW
Specifications Series Piping Heat Dissipation Capacity
190 hp | 142 kW
Specifications Total Weight
870 lb | 400 kg
