Petersen® 161-0 Series High Pressure Flat Form Bag - 31x31in
Petersen® 161-0 Series High Pressure Flat Form Bag - 31x31in
SKU:HIG-bad068
Heavy-duty Petersen® 161-0 Series High Pressure Flat Form Bag - 31x31in, Kevlar® reinforced for precise and safe heavy lifting operations.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Petersen® 161-0 Series High Pressure Flat Form Bag - 31x31in
$299.99
Quantity: 1
Claim Your Seller Account
Petersen® 161-0 Series High Pressure Flat Form Bag - 31x31in
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen® 161-0 Series High Pressure Flat Form Bag is a heavy-duty pneumatic lifting solution designed for emergency rescue, HAZMAT management, and industrial applications. Reinforced with Kevlar®, these bags offer low profile lifting with precise load capabilities. The flat form design eliminates the need for complex height/weight calculations, ensuring safe and efficient lifting operations. With a maximum load capacity of 20 tons and a wide operating temperature range from -40ºF to 130ºF, these bags provide reliable performance in diverse environments. Stackable and slip-resistant, these bags are the ideal choice for heavy lifting tasks.
Product Specifications

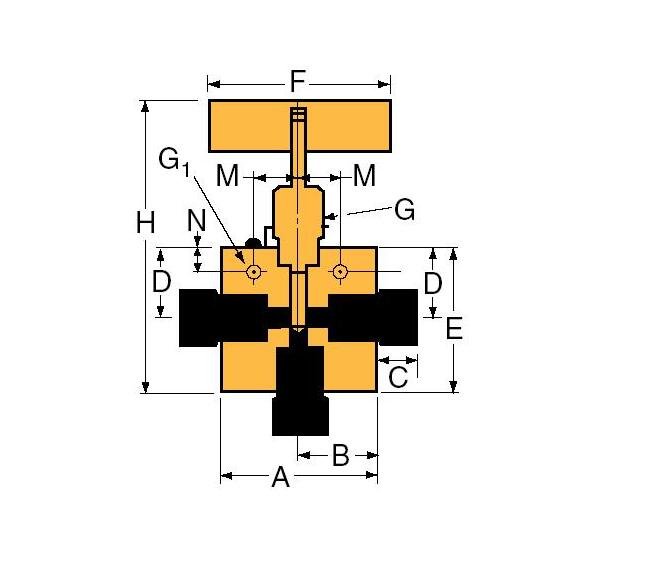

Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
0.75 in | 19.05 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
SW375
Specifications C Length
0.47 in | 11.94 mm
Specifications D1 Height
1.19 in | 30.23 mm
Specifications D Height
1.19 in | 30.23 mm
Specifications E Height
2.43 in | 61.72 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.75 in | 19.05 mm
Specifications H Height
5.00 in | 127.00 mm
Specifications M Length
0.62 in | 15.75 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.250 in | 6.35 mm
Specifications Outside Diameter Tube
3/8 in | 9.53 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
0.95
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.75 in | 19.1 mm
Specifications Valve Pattern
3-Way / 1 on Pressure
Valve Maintenance Valve Maintenance

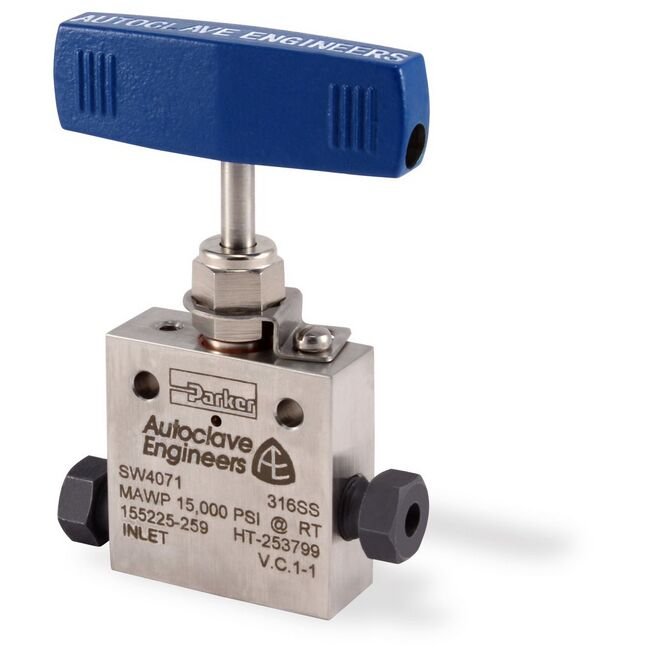

Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: RSW4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options Valve Options
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing and/or extended stuffing box is available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.â TG standard valve with Teflon glass packing to 600°F (316°C).GY standard valve with graphite braided yarn packing to 650°F (343°C).â Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.
