Petersen® 2 Inch MNPT High Pressure Cap
Petersen® 2 Inch MNPT High Pressure Cap
SKU:HIG-9d77f6
Seal high-pressure systems with precision using the Petersen® 2 Inch MNPT High Pressure Cap. Durable, reliable, and crafted to meet strict performance standards.
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Initiate Order
Petersen® 2 Inch MNPT High Pressure Cap
$15.99
Quantity: 1
Claim Your Seller Account
Petersen® 2 Inch MNPT High Pressure Cap
$15.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen® 2 Inch MNPT High Pressure Cap is the ideal solution for sealing high-pressure systems with precision and reliability. Crafted to meet strict performance standards, this cap ensures a secure fit and leak-free operation. Constructed with durable materials, it provides long-lasting durability even under extreme conditions. Whether for industrial use or commercial applications, the Petersen® High Pressure Cap delivers unmatched quality and performance.

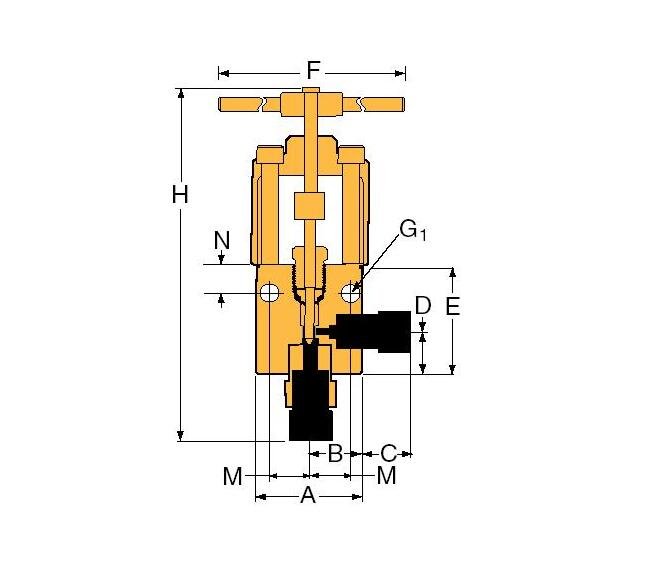

Product Specifications
Specifications A Width
3.00 in | 76.20 mm
Specifications Block Thickness
1.38 in | 34.93 mm
Specifications B Length
1.50 in | 38.10 mm
Specifications Connection Type
F562C
Specifications C Length
0.56 in | 14.27 mm
Specifications D Height
1.38 in | 35.05 mm
Specifications E Height
3.38 in | 85.73 mm
Specifications F Length
4.00 in | 101.60 mm
Specifications G1 Diameter
0.28 in | 7.11 mm
Specifications H Height
12.12 in | 307.85 mm
Specifications M Length
1.13 in | 28.58 mm
Specifications N Height
1.06 in | 26.97 mm
Specifications Orifice Diameter
0.188 in | 4.78 mm
Specifications Outside Diameter Tube
9/16 in | 14.27 mm
Specifications Pressure Rating At Room Temperature
50000 psi | 3447 bar
Specifications Rated Cv
0.66
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.87 in | 22.0 mm
Specifications Valve Pattern
2-Way Angle / Replaceable Seat
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R50Y9071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing is available for service from 0°F (-17.8°C) to 600°F (316°C) by adding the following suffixes to catalog order number.TG standard valve with Teflon glass packing to 600°F (316°C).B standard valve with cryogenic trim materials and Teflon packing to -100°F (-73°C).
