Petersen® 310 and 311 Series 1/8 x 1 1/2in Probe Pressure Gauge Adapter
Petersen® 310 and 311 Series 1/8 x 1 1/2in Probe Pressure Gauge Adapter
SKU:HIG-5c8cab
High-quality 304 stainless steel 1/8 x 1 1/2in Probe Pressure Gauge Adapter for precise and versatile pressure measurements in industrial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Petersen® 310 and 311 Series 1/8 x 1 1/2in Probe Pressure Gauge Adapter
$29.99
Quantity: 1
Claim Your Seller Account
Petersen® 310 and 311 Series 1/8 x 1 1/2in Probe Pressure Gauge Adapter
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen® 310 and 311 Series 1/8 x 1 1/2in Probe Pressure Gauge Adapter features a high-quality probe made of durable 304 stainless steel. With a 1/8-inch diameter and 2-inch length, this adapter is designed for precise pressure measurements. The exposed 1 1/2-inch probe ensures accurate readings in industrial settings. Compatible with both 1/4" and 1/2" plugs, this adapter is versatile and reliable for various applications, meeting stringent quality standards.

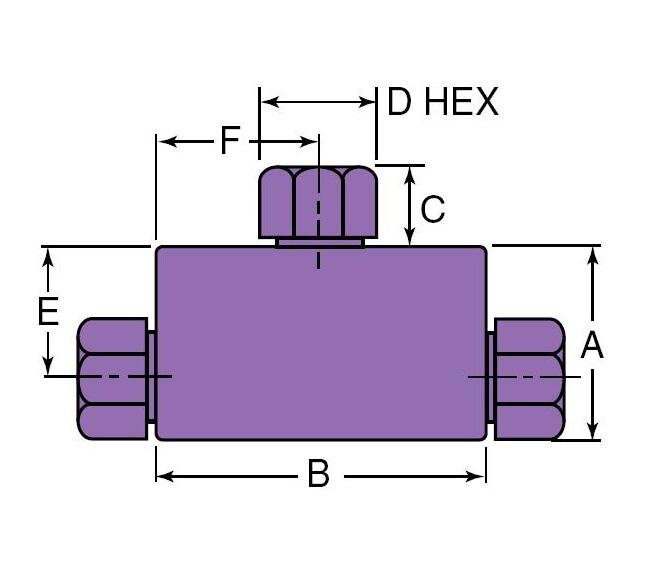

Product Specifications
Specifications A Height
1.38 in | 35.05 mm
Specifications Block Thickness
0.75 in | 19.05 mm
Specifications B Width
2.00 in | 50.80 mm
Specifications Connection Type
SF375CX
Specifications C Height
0.44 in | 11.10 mm
Specifications D Hex
0.62 in | 15.75 mm
Specifications E Length
1.00 in | 25.40 mm
Specifications F Length
1.00 in | 25.40 mm
Specifications Minimum Opening
0.219 in | 5.56 mm
Specifications Outside Diameter Tube
9.53 mm | 3/8 in
Specifications Pressure Rating
20000 psi | 1378.93 bar
Specifications Tubing Engagement Depth
0.69 in | 17.6 mm
