Petersen® 6 Inch Stainless Steel Wing Nut Plug
Petersen® 6 Inch Stainless Steel Wing Nut Plug
SKU:HIG-ba3360
Durable 6-inch stainless steel wing nut plug with chemical-resistant rubber for secure pipe sealing.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Petersen® 6 Inch Stainless Steel Wing Nut Plug
$29.99
Quantity: 1
Claim Your Seller Account
Petersen® 6 Inch Stainless Steel Wing Nut Plug
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen® 143-3XXX-C Series 6 Inch Stainless Steel Wing Nut Plug is a durable and cost-effective solution for sealing pipes. Constructed with stainless steel bolt and plate and chemical-resistant nitrile rubber, this plug ensures secure sealing and protection against chemicals. With a nominal diameter of 6 inches, it fits pipes ranging from 5.62 inches to 6.3 inches. Ideal for pipe dust covers, this plug meets stringent institutional procurement standards.

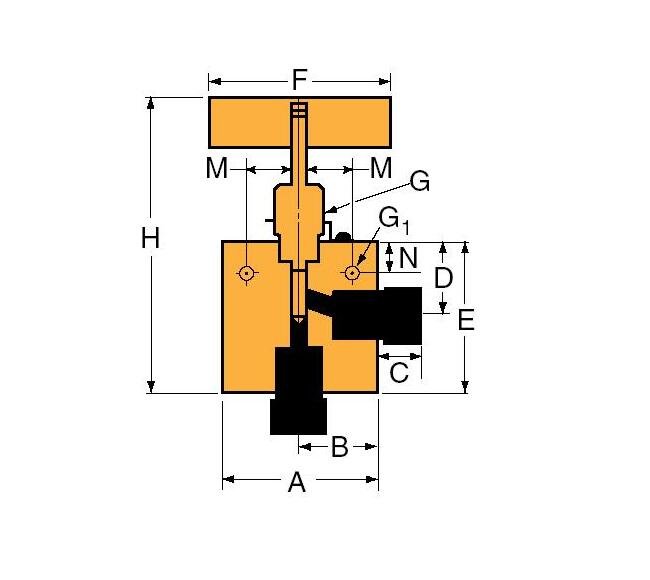

Product Specifications
Specifications A Width
4.12 in | 104.65 mm
Specifications Block Thickness
1.50 in | 38.10 mm
Specifications B Length
2.06 in | 52.32 mm
Specifications Connection Type
QS 750
Specifications C Length
0.62 in | 15.75 mm
Specifications D Height
2.19 in | 55.58 mm
Specifications E Height
4.63 in | 117.48 mm
Specifications F Length
10.25 in | 260.35 mm
Specifications G1 Bracket Mounting Hole Size
0.44 in | 11.18 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.12 in | 28.45 mm
Specifications H Height
7.88 in | 200.15 mm
Specifications M Length
0.88 in | 22.35 mm
Specifications N Height
0.63 in | 16.00 mm
Specifications Orifice Diameter
0.516 in | 13.11 mm
Specifications Outside Diameter Tube
3/4 in | 19.05 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 10342 bar
Specifications Rated Cv
5.20
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
1.00 in | 25.4 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R15QS4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C).High temperature packing and/or extended stuffing box are available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.â TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 650°F (343°C).â Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.
