Petersen® 936-5 Series 3.5 Inch Pipe Mechanical Plug Safety Gage
Petersen® 936-5 Series 3.5 Inch Pipe Mechanical Plug Safety Gage
SKU:HIG-81f8c5
Securely clamp and prevent plug displacement during testing with the Petersen® 936-5 Series Pipe Safety Gage.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Petersen® 936-5 Series 3.5 Inch Pipe Mechanical Plug Safety Gage
$149.99
Quantity: 1
Claim Your Seller Account
Petersen® 936-5 Series 3.5 Inch Pipe Mechanical Plug Safety Gage
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance pipe testing efficiency with the Petersen® 936-5 Series Mechanical Plug Safety Gage. Designed for use with mechanical test plugs, this safety gage securely clamps to the outside diameter of standard 3.5-inch pipes. Constructed from painted carbon steel with a plated chain, it ensures reliable performance and prevents plug displacement during testing. The installation instructions emphasize maintaining the necessary slack for plug movement, enhancing safety and effectiveness during pressure testing procedures.

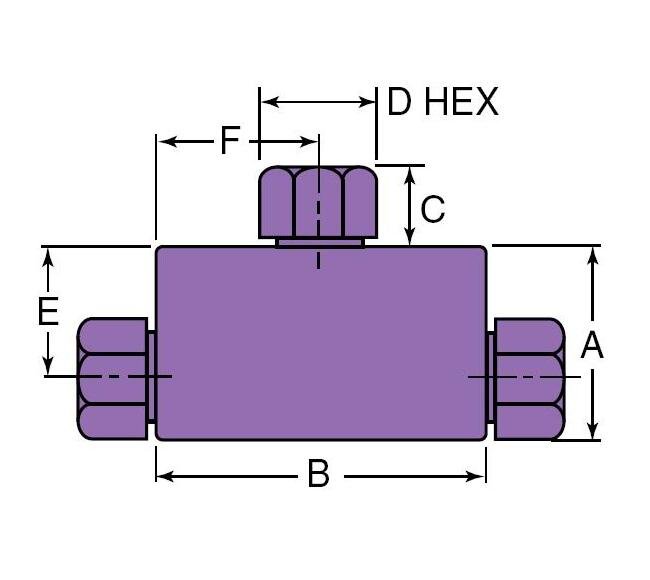

Product Specifications
Specifications A Height
1 in | 25.4 mm
Specifications Block Thickness
0.62 in | 15.75 mm
Specifications B Width
1.50 in | 38.10 mm
Specifications Connection Type
W125
Specifications C Height
0.31 in | 7.87 mm
Specifications D Hex
0.50 in | 12.70 mm
Specifications E Length
0.75 in | 19.05 mm
Specifications F Length
0.75 in | 19.05 mm
Specifications Minimum Opening
0.094 in | 2.39 mm
Specifications Outside Diameter Tube
3.18 mm | 1/8 in
Specifications Pressure Rating
15000 psi | 1034.19 bar
Specifications Tubing Engagement Depth
0.47 in | 11.9 mm
