Petersen® 936-5 Series Mechanical Plug Safety Gage
Petersen® 936-5 Series Mechanical Plug Safety Gage
SKU:HIG-6bf326
Secure mechanical test plugs with the Petersen® 936-5 Series Safety Gage. Made of durable carbon steel with a plated chain for reliable pipe testing procedures.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Petersen® 936-5 Series Mechanical Plug Safety Gage
$89.99
Quantity: 1
Claim Your Seller Account
Petersen® 936-5 Series Mechanical Plug Safety Gage
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen® 936-5 Series 0.75” Nominal Pipe Size Mechanical Plug Safety Gage is essential for securing mechanical test plugs on standard pipe sizes. Crafted from durable painted carbon steel with a plated chain, this safety gage ensures optimal safety during testing procedures. Installation is made easy with clear procedures provided, guaranteeing a secure fit without limiting the self-sealing and self-gripping features of Petersen's 147 Series Test Plugs. Ideal for preventing plug displacement and minimizing risks, the Petersen® 936-5 Series Mechanical Plug Safety Gage is a reliable asset for industrial applications.

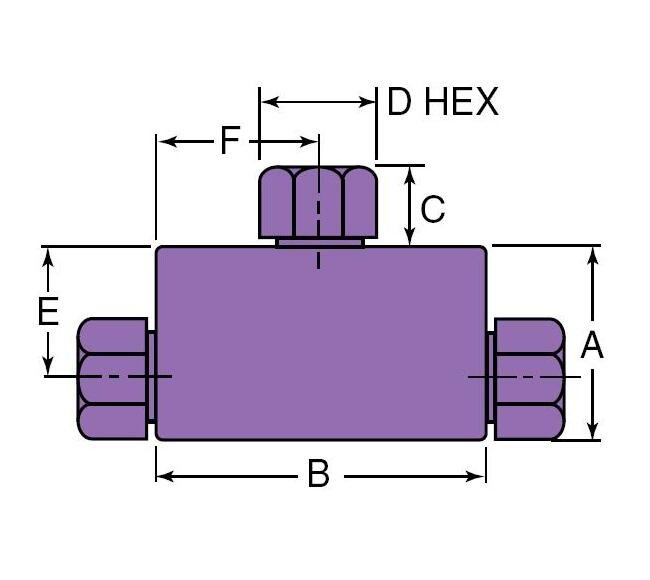

Product Specifications
Specifications A Height
1.38 in | 35.05 mm
Specifications Block Thickness
0.75 in | 19.05 mm
Specifications B Width
2.00 in | 50.80 mm
Specifications Connection Type
SW375
Specifications C Height
0.53 in | 13.46 mm
Specifications D Hex
0.75 in | 19.05 mm
Specifications E Length
1.00 in | 25.40 mm
Specifications F Length
1.00 in | 25.40 mm
Specifications Minimum Opening
0.250 in | 6.35 mm
Specifications Outside Diameter Tube
9.53 mm | 3/8 in
Specifications Pressure Rating
15000 psi | 1034.19 bar
Specifications Tubing Engagement Depth
0.69 in | 17.6 mm
