Petersen® 938-96 Series 12-Inch Fixed Steel Deflection Gauge

Name: Petersen® 938-96 Series 12-Inch Fixed Steel Deflection Gauge
Brand: Parker / Autoclave Engineers
SKU: HIG-3fc8ea
Price: 149.99 USD
Availability: OutOfStock

SKU:HIG-3fc8ea

Test flexible sewer pipe with precision using the Petersen® 938-96 Series Steel Deflection Gauge, ensuring optimal performance and compliance with ASTM standards.

$149.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Petersen® 938-96 Series Fixed Size Steel Deflection Gauge is designed for testing flexible sewer pipes for out-of-roundness or deflection as per ASTM specifications D3034 and F679. This durable, zinc-plated gauge ensures accurate testing with its nine-arm design, allowing easy passage of gravel and debris. Meeting ASTM requirements, this gauge guarantees optimal pipe performance by confirming proper bedding and backfilling according to ASTM D2321.

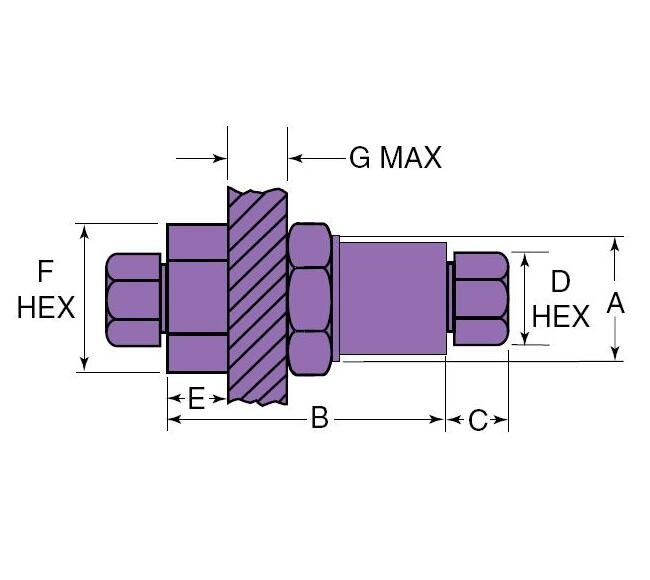

Product Specifications

Specifications A Panel Hole Drill Size

1.12 in | 28.45 mm

Specifications B Length

2.38 in | 60.45 mm

Specifications Connection Type

F375C

Specifications C Length

0.52 in | 13.21 mm

Specifications D Hex

0.81 in | 20.57 mm

Specifications E Length

0.78 in | 19.81 mm

Specifications F Hex

1.38 in | 35.05 mm

Specifications G Thickness

0.38 in | 9.65 mm

Specifications Minimum Opening

0.125 in | 3.18 mm

Specifications Outside Diameter Tube

9.53 mm | 3/8 in

Specifications Pressure Rating

60000 psi | 4136.79 bar

Specifications Tubing Engagement Depth

0.69 in | 17.5 mm

Petersen® 938-96 Series 12-Inch Fixed Steel Deflection Gauge
