Petersen® 938-96 Series 8 Inch Steel Deflection Gauge

Name: Petersen® 938-96 Series 8 Inch Steel Deflection Gauge
Brand: Parker / Autoclave Engineers
SKU: HIG-e3ca38
Price: 199.99 USD
Availability: OutOfStock

SKU:HIG-e3ca38

Test sewer pipe deflection accurately with the Petersen® 938-96 Series 8 Inch Steel Gauge, meeting ASTM standards.

$199.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Petersen® 938-96 Series 8 Inch Steel Deflection Gauge is a durable and corrosion-resistant tool designed to test flexible sewer pipes for out-of-roundness or deflection. Meeting ASTM specifications D3034 and F679, this gauge ensures optimal pipe performance by confirming proper bedding and backfilling procedures. Featuring a nine-arm design and open structure for debris pass-through, this gauge guarantees accurate testing results and adherence to ASTM requirements.

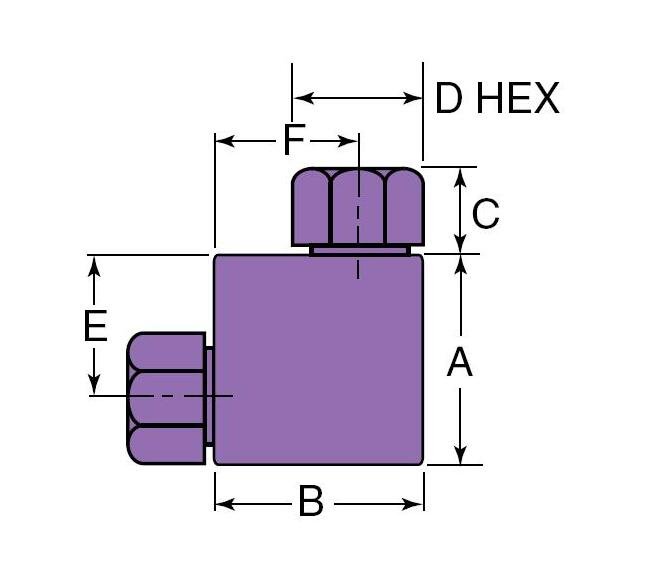

Product Specifications

Specifications A Height

1.50 in | 38.10 mm

Specifications Block Thickness

1.00 in | 25.40 mm

Specifications B Width

2.00 in | 50.80 mm

Specifications Connection Type

F375C

Specifications C Height

0.52 in | 13.21 mm

Specifications D Hex

0.81 in | 20.57 mm

Specifications E Length

1.00 in | 25.40 mm

Specifications F Length

1.25 in | 31.75 mm

Specifications Minimum Opening

0.125 in | 3.18 mm

Specifications Outside Diameter Tube

9.53 mm | 3/8 in

Specifications Pressure Rating

60000 psi | 4136.79 bar

Specifications Tubing Engagement Depth

0.69 in | 17.5 mm

Petersen® 938-96 Series 8 Inch Steel Deflection Gauge
