The Petersen® CGA 347 Inlet Pressure Regulator is a single-stage regulator designed for medical air applications, with a maximum inlet pressure of 5500 psi and an adjustable outlet pressure range from 0 to 125 psi. It features a CGA 347 inlet connection and a 9/16 in. -18 RH outlet connection, making it compatible with various high-pressure flat form bags. This regulator ensures precise control and reliable performance in healthcare settings, meeting stringent quality standards for safety and efficiency.

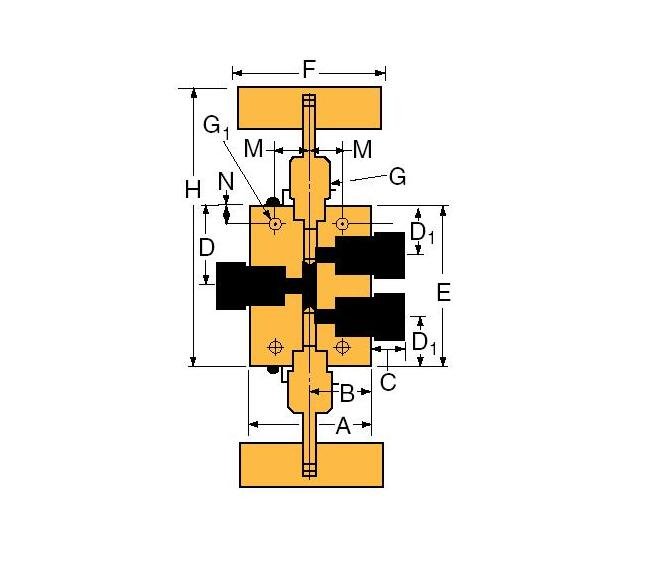

Product Specifications
Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
0.75 in | 19.05 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
SW250
Specifications C Length
0.38 in | 9.65 mm
Specifications D1 Height
1.19 in | 30.23 mm
Specifications D Height
1.68 in | 42.67 mm
Specifications E Height
3.38 in | 85.85 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.75 in | 19.05 mm
Specifications H Height
5.94 in | 150.88 mm
Specifications M Length
0.62 in | 15.75 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.187 in | 4.75 mm
Specifications Outside Diameter Tube
1/4 in | 6.35 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
0.65
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.69 in | 17.5 mm
Specifications Valve Pattern
3-Way / 2-Stem Manifold
Valve Maintenance Valve Maintenance
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: RSW4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options Valve Options
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing and/or extended stuffing box is available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.â TG standard valve with Teflon glass packing to 600°F (316°C).GY standard valve with graphite braided yarn packing to 650°F (343°C).â Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.
