The Petersen® High Lift Flange Weld Test Plug from the 151 Series is a game-changer in weld testing. Designed with a 'High Lift' seal for superior seal to pipe clearance, this plug eliminates the need for grinding out deep root penetrations, saving time and minimizing environmental liabilities. With features like fast installation, adjustable seal depth, and low water requirements, this plug offers efficient monitoring, isolation, purging, welding, and testing of weld joints to ANSI B16.5 standards. Rugged construction, versatile compatibility, and compliance with industry-specific certifications make it a reliable tool for institutional buyers.

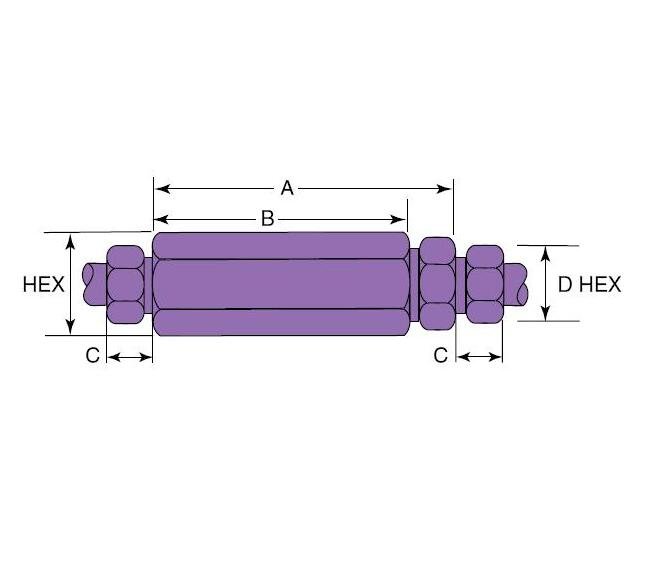

Product Specifications
Specifications A Length
3.18 in | 80.77 mm
Specifications B Length
2.56 in | 65.02 mm
Specifications C Length
0.44 in | 11.18 mm
Specifications D Hex
0.63 in | 16.00 mm
Specifications Fits Connection Type
SW250
Specifications Hex
0.81 in | 20.57 mm
Specifications Orifice
0.188 in | 4.78 mm
Specifications Pressure Rating
15000 psi | 1034.19 bar
Specifications Rated Cv
0.63
Specifications Tubing Engagement Depth
0.69 in | 17.5 mm
