Petersen® Red Color Inflation Hose Assembly
Petersen® Red Color Inflation Hose Assembly
SKU:HIG-19fbc1
Durable Petersen® Red Color Inflation Hose Assembly for high-pressure applications with shut-off valve and pressure relief. Ideal for 161-5 Series bags.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Petersen® Red Color Inflation Hose Assembly
$39.99
Quantity: 1
Claim Your Seller Account
Petersen® Red Color Inflation Hose Assembly
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen® Red Color Inflation Hose Assembly is a premium-quality hose designed for heavy-duty applications. With a 3/8" inside diameter and a 16 ft length, this hose is ideal for use with 161-5 Series High Pressure Heavy Duty Bags. It features a shut-off and pressure relief valve for added safety and control. The red all-weather construction ensures durability and longevity, making it suitable for a variety of environments. This hose assembly is compatible with 1/4 Inch safety coupler and nipple connections, providing a secure and leak-free operation. Trust Petersen® for reliable performance in your inflation needs.

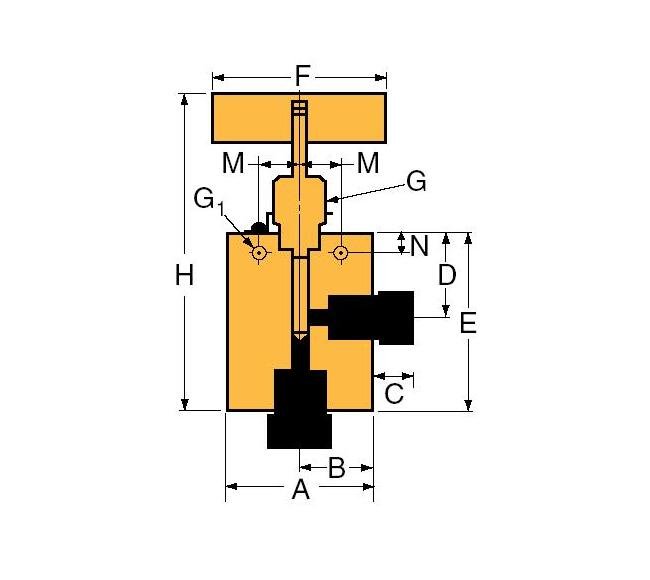

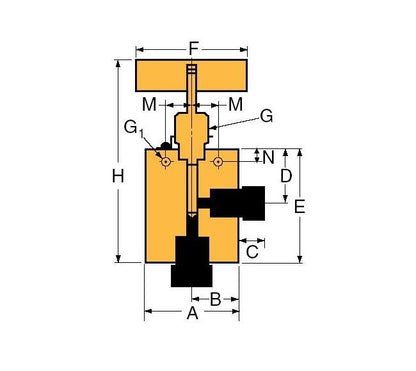

Product Specifications
Specifications A Width
2.50 in | 63.50 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.25 in | 31.75 mm
Specifications Connection Type
SW500
Specifications C Length
0.53 in | 13.46 mm
Specifications D Height
1.75 in | 44.45 mm
Specifications E Height
3.38 in | 85.85 mm
Specifications F Length
4.00 in | 101.60 mm
Specifications G1 Bracket Mounting Hole Size
0.34 in | 8.64 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
6.45 in | 163.83 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.50 in | 12.70 mm
Specifications Orifice Diameter
0.375 in | 9.53 mm
Specifications Outside Diameter Tube
1/2 in | 12.70 mm
Specifications Pressure Rating At Room Temperature
10000 psi | 690 bar
Specifications Rated Cv
1.90
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.81 in | 20.6 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance Valve Maintenance
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: RSW4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options Valve Options
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing and/or extended stuffing box is available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.â TG standard valve with Teflon glass packing to 600°F (316°C).GY standard valve with graphite braided yarn packing to 650°F (343°C).â Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.
