Petersen 130-4 Series Leak Detector Plug

Petersen 130-4 Series Leak Detector Plug

SKU:LOW-a33691

Versatile Petersen 130-4 Series Leak Detector Plug for low-pressure sewer line tests & leak location, offering durability & ease of use.

Regular price $315.99
Regular price Sale price $315.99
Sale

Initiate Order

Petersen 130-4 Series Leak Detector Plug

Petersen 130-4 Series Leak Detector Plug

$315.99

Quantity: 1

Claim Your Seller Account

Petersen 130-4 Series Leak Detector Plug

Petersen 130-4 Series Leak Detector Plug

$315.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Petersen 130-4 Series Leak Detector Plug is a versatile solution designed for low-pressure sewer line acceptance tests, leak location testing, and flow blocking. With a nominal size range of 20 to 40 inches (500 to 1000 mm) and a maximum back pressure resistance of 8.7 psi (0.6 bar), this plug offers reliability and durability. Made with natural rubber and featuring cross-biased cording on specific sizes, it ensures a secure fit. The plug's features such as eye bolts on both ends, color-coded inflation ports, and easy-to-use quick-disconnect hose connections make it a user-friendly and efficient choice for various applications. Rupture discs are also available for added safety.

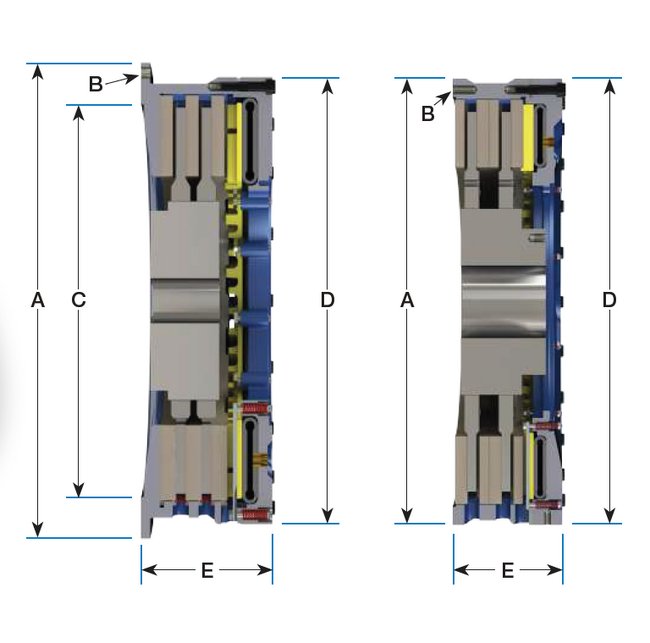

Product Specifications

Dimensions Diameter B
21/32 in
Dimensions Diameter B Metric Mounting
18.0 mm
Dimensions Dimension A
18.750 in | 476.25 mm
Dimensions Dimension A Metric Mounting
470.00 mm
Dimensions Dimension A Tolerance
+0.000 in | -0.003 in | +0.00 mm | -0.08 mm
Dimensions Dimension A Tolerance Metric Mounting
+0.00 mm | -0.08 mm
Dimensions Dimension C
14.375 in | 365.13 mm
Dimensions Dimension C Metric Mounting H7
370.00 mm
Dimensions Dimension C Tolerance
+0.000 in | -0.003 in | +0.00 mm | -0.08 mm
Dimensions Dimension D
17-1/2 in | 444.5 mm
Dimensions Dimension E Ductile Slotted Center Plate
9-1/2 in | 241 mm
Dimensions Dimension E Ventilated Center Plate
6 in | 44.5 mm
Dimensions Hole Circle B
17.50 in | 444.5 mm
Dimensions Hole Circle B Metric Mounting
445.0 mm
Dimensions Quantity
8
Dimensions Quantity Metric Mounting
8
Features Features
Predictable preventative maintenanceAvailable in hydraulic or pneumatic actuationSolid, slotted, or ventilated center plate optionsAvailable with Full Marine Corrosion Protection packageCompatible with the Power Performance LI upgradeHigh cycle life
Note Note
Consult WPT® Application Engineering for application assistance, service factors, specifications, and detailed drawings/3D models.
Specifications Lining Area
170 in² | 1100 cm²
Specifications Maximum Bore Range
3.30 in | 83.8 mm
Specifications Maximum Slip Speed
1640 rpm
Specifications Maximum Speed Hub And Center Plate Cp
2460 rpm
Specifications Minimum Bore Range
1.50 in | 38.1 mm
Specifications Static Torque Rating At 100 Pound Per Square Inch
28300 lbf·in | 3190 N·m
Weight And Inertia Hub And Center Plate Cp Inertia
5.8 lb·ft² | 0.24 kg·m²
Weight And Inertia Hub And Center Plate Cp Weight
48 lb | 22 kg
Weight And Inertia Total Weight
190 lb | 88 kg
