Petersen 130-6 Series 21 Inch Large Flow-Through Bypass Plug
Petersen 130-6 Series 21 Inch Large Flow-Through Bypass Plug
SKU:LOW-3d6eb2
Versatile Petersen 21" Large Flow-Through Bypass Plug for gravity bypassing or pumping. Lightweight aluminum construction with easy-to-replace tire valve.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Petersen 130-6 Series 21 Inch Large Flow-Through Bypass Plug
$399.99
Quantity: 1
Claim Your Seller Account
Petersen 130-6 Series 21 Inch Large Flow-Through Bypass Plug
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 130-6 Series Large Flow-Through Bypass Plug is a versatile solution designed for gravity bypassing or pumping applications. With a durable aluminum construction and a removable tire valve for easy replacement, this plug offers a wide range of use from 20.01 to 21.81 inches. Equipped with a top-end male NPT threaded bypass and a 3/8" eye bolt for lifting, this plug ensures efficient and reliable performance. Its lightweight design and interchangeable flanges make it ideal for various applications, meeting the highest industry standards for quality and safety.
Product Specifications

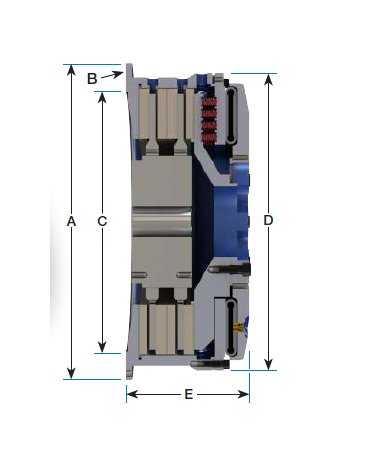

Dimensions Diameter B Metric Mounting
14.0 mm
Dimensions Dimension A Imperial Mounting
12.125 in | 307.98 mm
Dimensions Dimension A Metric Mounting
310.00 mm
Dimensions Dimension A Tolerance Imperial Mounting
+0.000 mm | -0.003 mm | +0.00 in | -0.08 in
Dimensions Dimension A Tolerance Metric Mounting
+0.00/-0.08 mm
Dimensions Dimension B Diameter Imperial Mounting
17/32 in
Dimensions Dimension B Hole Circle Imperial Mounting
11.13 in | 282.6 mm
Dimensions Dimension C Imperial Mounting
8.378 in | 212.80 mm
Dimensions Dimension C Metric Mounting H7
220.00 mm
Dimensions Dimension C Tolerance Imperial Mounting
+0.00 mm | -0.08 mm | +0.000 in | -0.003 in
Dimensions Dimension D
9-3/8 in | 238.1 mm
Dimensions Dimension E Ductile Slotted Center Plate
5.50 in | 139.70 mm
Dimensions Dimension E Ventilated Center Plate
5.94 in | 150.88 mm
Dimensions Hole Circle B Metric Mounting
280.0 mm
Dimensions Maximum Bore Range
2.50 in | 63.5 mm
Dimensions Minimum Bore Range
0.94 in | 23.9 mm
Dimensions Quantity Imperial Mounting
6
Dimensions Quantity Metric Mounting
6
Features Features
Available in hydraulic or pneumatic releaseHigh cycle lifePredictable preventative maintenanceSolid, slotted, or ventilated center plate optionsAvailable with Full Marine Corrosion Protection packageCompatible with the Power Performance LI upgradeType approval certification available: DNV, ABS, ATEX
Note Note
Consult WPT® Application Engineering for application assistance, service factors, specifications, and detailed drawings/3D models.
Specifications Lining Area
55 in² | 360 cm²
Specifications Maximum Slip Speed
1890 rpm
Specifications Maximum Speed Hub And Center Plate Cp
4290 rpm
Specifications Note For Static Torque Rating At Minimum Release
Dynamic (slipping) Torque is 75% of the Static Torque.
Specifications Static Torque Rating At 60 Pound Force Per Square
4130 lbf·in | 467 N·m
Specifications Static Torque Rating At 75 Pound Force Per Square
5170 lbf·in | 584 N·m
Specifications Static Torque Rating At 90 Pound Force Per Square
6200 lbf·in | 701 N·m
Weight And Inertia Hub And Center Plate Cp Inertia
0.46 lb·ft² | 0.019 kg·m²
Weight And Inertia Hub And Center Plate Cp Weight
9.3 lb | 4.2 kg
Weight And Inertia Total Weight
70 lb | 32 kg
