Petersen 130-6 Series Large Flow-Through Bypass Plug
Petersen 130-6 Series Large Flow-Through Bypass Plug
SKU:LOW-d0bbf8
Versatile Petersen 130-6 Series Large Flow-Through Bypass Plug for gravity bypassing or bypass pumping, with durable construction and multi-size design.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Petersen 130-6 Series Large Flow-Through Bypass Plug
$199.99
Quantity: 1
Claim Your Seller Account
Petersen 130-6 Series Large Flow-Through Bypass Plug
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 130-6 Series Large Flow-Through Bypass Plug is a versatile solution designed for gravity bypassing or bypass pumping in a wide range of applications. Featuring a durable construction with a multi-size design, this plug offers great expansion capabilities. It is equipped with a removable tire valve for easy replacement and a lightweight aluminum bypass for efficient handling. With a nominal size of 6 to 10 inches, this plug ensures reliable performance with a maximum back pressure of 10 psi. Ideal for institutions and government entities requiring precision and quality in bypass operations.
Product Specifications

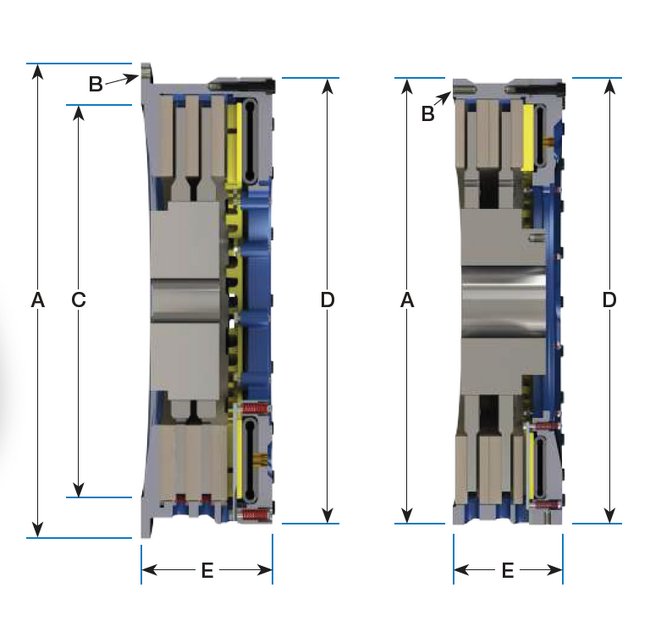

Dimensions Diameter B
2 Inch (in)-4.5 Normally Closed (NC)
Dimensions Diameter B Metric Mounting
2 Inch (in)-4.5 Normally Closed (NC)
Dimensions Dimension A
70.500 in | 1790.70 mm
Dimensions Dimension A Metric Mounting
1790.00 mm
Dimensions Dimension A Tolerance
+0.000 in | -0.003 in | +0.00 mm | -0.08 mm
Dimensions Dimension A Tolerance Metric Mounting
+0.00 mm | -0.08 mm
Dimensions Dimension C
62.750 in | 1593.85 mm
Dimensions Dimension C Metric Mounting H7
1590.00 mm
Dimensions Dimension C Tolerance
+0.000 in | -0.003 in | +0.00 mm | -0.08 mm
Dimensions Dimension D
70-1/2 in | 1790.7 mm
Dimensions Dimension E Ventilated Center Plate
27-1/8 in | 60.3 mm
Dimensions Hole Circle B
66.50 in | 1689.1 mm
Dimensions Hole Circle B Metric Mounting
1689.0 mm
Dimensions Quantity
24
Dimensions Quantity Metric Mounting
24
Features Features
Predictable preventative maintenanceAvailable in hydraulic or pneumatic actuationSolid, slotted, or ventilated center plate optionsAvailable with Full Marine Corrosion Protection packageCompatible with the Power Performance LI upgradeHigh cycle life
Note Note
Consult WPT® Application Engineering for application assistance, service factors, specifications, and detailed drawings/3D models.Shipped without backplate.
Specifications Lining Area
15000 in² | 94000 cm²
Specifications Maximum Bore Range
18.90 in | 480.1 mm
Specifications Maximum Slip Speed
480 rpm
Specifications Maximum Speed Hub And Center Plate Cp
570 rpm
Specifications Minimum Bore Range
10.00 in | 254.0 mm
Specifications Static Torque Rating At 100 Pound Per Square Inch
11900000 lbf·in | 1340000 N·m
Weight And Inertia Hub And Center Plate Cp Inertia
19000 lb·ft² | 800 kg·m²
Weight And Inertia Hub And Center Plate Cp Weight
7600 lb | 3500 kg
Weight And Inertia Total Weight
15000 lb | 6600 kg
