Petersen 142-8 Series 3" Monitor Well Plug
Petersen 142-8 Series 3" Monitor Well Plug
SKU:HIG-78aea2
Seal monitor wells effectively with the Petersen 142-8 Series 3" plug, meeting EPA requirements and offering secure sealing for versatile applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Petersen 142-8 Series 3" Monitor Well Plug
$29.99
Quantity: 1
Claim Your Seller Account
Petersen 142-8 Series 3" Monitor Well Plug
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 142-8 Series 3" Monitor Well Plug is designed to effectively seal monitor wells, meeting all EPA requirements for locking plugs. With a nominal size of 3 inches, a range of use from 2.8 to 3.1 inches, and a maximum back pressure of 6.5 psi, this plug is versatile and reliable. It features a chemical and petroleum-resistant Estaloc™ plastic construction, a petroleum-resistant nitrile O-ring, and a stainless steel carriage bolt for durability. The yellow chromate-coated locking latch ensures secure sealing, making it suitable for various applications. Always follow safety guidelines for installation and use to prevent property damage or injuries.
Product Specifications

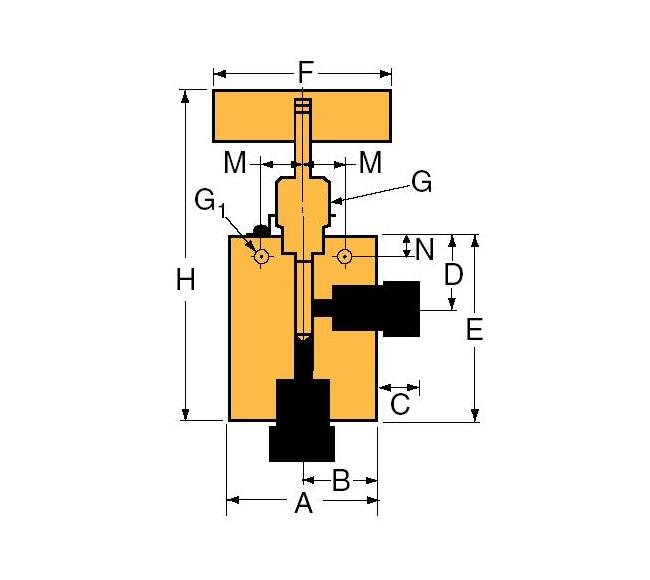

Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
0.75 in | 19.05 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
SF375CX20
Specifications C Length
0.47 in | 11.94 mm
Specifications D Height
1.19 in | 30.23 mm
Specifications E Height
2.44 in | 61.90 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.75 in | 19.05 mm
Specifications H Height
4.81 in | 122.25 mm
Specifications M Length
0.62 in | 15.75 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.219 in | 5.56 mm
Specifications Outside Diameter Tube
3/8 in | 9.53 mm
Specifications Pressure Rating At Room Temperature
20000 psi | 1379 bar
Specifications Rated Cv
0.75
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.69 in | 17.6 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R20SM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.Note: Caution should be exercised in proper selection of medium pressure tubing based on actual operating conditions. Two tubing series available in some sizes: 15000 psi (1034 bar) and 20000 psi (1380 bar).
Valve Options 0
Extreme Temperatures Standard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing and/or extended stuffing box are available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number. TG standard valve with Teflon glass packing to 600°F (316°C). GY standard valve with graphite braided yarn packing to 800°F (427°C). Note: 3/4â rated 8000 psi (552 bar) and 1â rated 6000 psi (412 bar) maximum with graphite yarn packing.â HT extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C). B standard valve with cryogenic trim materials and Teflon packing to -100°F (-73°C). LT extended stuffing box valve with Teflon packing and cryogenic trim materials to -423°F (-252°C). â This packing will affect the pressure rating. Refer to Technical Information section.
