Petersen 143-2 Series 2in T-Handle Expandable Rubber Plug

Petersen 143-2 Series 2in T-Handle Expandable Rubber Plug

HIG-4e537a

Versatile, cost-effective 2in T-Handle Rubber Plug for easy hole sealing or product hanging, non-pressure rated and reusable.

$9.99
$9.99
Sale

Initiate Order

Petersen 143-2 Series 2in T-Handle Expandable Rubber Plug

Petersen 143-2 Series 2in T-Handle Expandable Rubber Plug

$9.99

Quantity: 1

Claim Your Seller Account

Petersen 143-2 Series 2in T-Handle Expandable Rubber Plug

Petersen 143-2 Series 2in T-Handle Expandable Rubber Plug

$9.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Petersen 143-2 Series 2 Inch T-Handle Expandable Rubber Plug is a versatile and cost-effective solution for sealing holes or hanging products. Crafted with durable Neoprene rubber and featuring a brass handle with zinc-plated steel hardware, this plug offers a secure fit. With a nominal size of 2 inches and expandable diameter up to 2.12 inches, it provides a reliable seal. Its T-handle design ensures easy installation without the need for tools. Lightweight, reusable, and non-pressure rated, this plug is a practical choice for various applications.

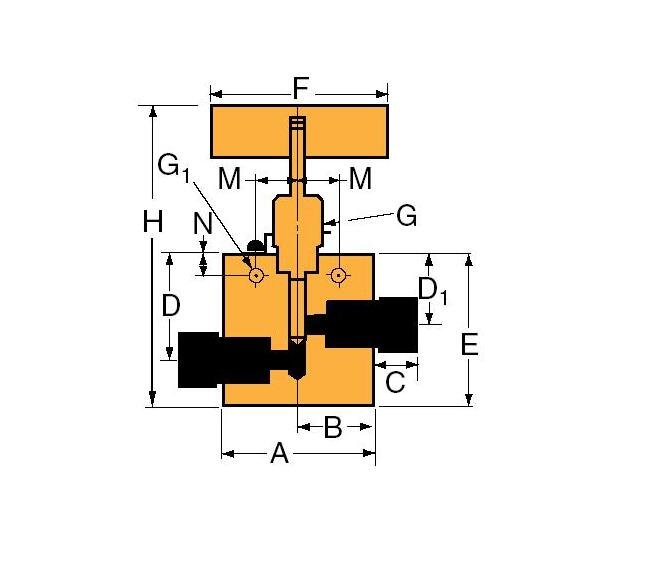

Product Specifications

Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
0.75 in | 19.05 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
QS 250
Specifications C Length
0.38 in | 9.53 mm
Specifications D1 Height
1.19 in | 30.23 mm
Specifications D Height
1.62 in | 41.15 mm
Specifications E Height
2.00 in | 50.80 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.75 in | 19.05 mm
Specifications H Height
4.69 in | 119.13 mm
Specifications M Length
0.62 in | 15.75 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.125 in | 3.18 mm
Specifications Outside Diameter Tube
1/4 in | 6.35 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 10342 bar
Specifications Rated Cv
0.31
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.55 in | 14.0 mm
Specifications Valve Pattern
2-Way Straight
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R15QS4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C).High temperature packing and/or extended stuffing box are available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.†TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 650°F (343°C).†Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.
