Petersen 143-2 Series 5 Inch T-Handle Expandable Rubber Plug
Petersen 143-2 Series 5 Inch T-Handle Expandable Rubber Plug
SKU:HIG-84b89c
Versatile Neoprene rubber plug for hole sealing or product hanging, easy to install without tools, cost-effective and reusable.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Petersen 143-2 Series 5 Inch T-Handle Expandable Rubber Plug
$12.99
Quantity: 1
Claim Your Seller Account
Petersen 143-2 Series 5 Inch T-Handle Expandable Rubber Plug
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 143-2 Series 5 Inch T-Handle Expandable Rubber Plug is a durable and versatile solution for sealing holes or hanging products. With a Neoprene rubber construction and brass handle, this plug offers a secure fit and easy installation without the need for tools. Its expandable design allows for a snug fit, making it reusable and cost-effective. Suitable for various applications, this plug meets institutional procurement standards and is ideal for both consumer and government buyers.

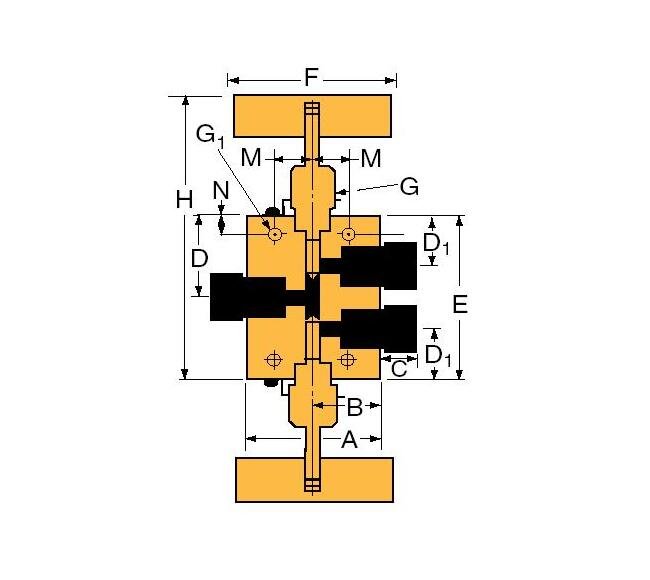

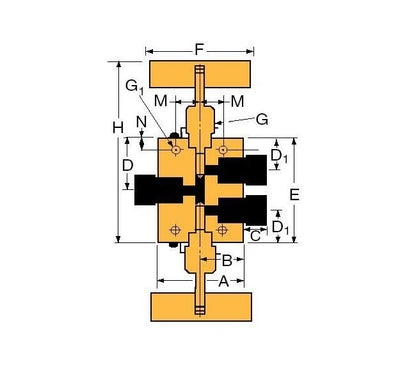

Product Specifications
Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
0.75 in | 19.05 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
SF375CX20
Specifications C Length
0.47 in | 11.94 mm
Specifications D1 Height
1.19 in | 30.15 mm
Specifications D Height
1.69 in | 42.85 mm
Specifications E Height
3.38 in | 85.73 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.75 in | 19.05 mm
Specifications H Height
5.68 in | 144.27 mm
Specifications M Length
0.62 in | 15.75 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.219 in | 5.56 mm
Specifications Outside Diameter Tube
3/8 in | 9.53 mm
Specifications Pressure Rating At Room Temperature
20000 psi | 1379 bar
Specifications Rated Cv
0.75
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.69 in | 17.6 mm
Specifications Valve Pattern
3-Way / 2-Stem Manifold
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R20SM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.Note: Caution should be exercised in proper selection of medium pressure tubing based on actual operating conditions. Two tubing series available in some sizes: 15000 psi (1034 bar) and 20000 psi (1380 bar).
Valve Options 0
Extreme Temperatures Standard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing and/or extended stuffing box are available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number. TG standard valve with Teflon glass packing to 600°F (316°C). GY standard valve with graphite braided yarn packing to 800°F (427°C). Note: 3/4â rated 8000 psi (552 bar) and 1â rated 6000 psi (412 bar) maximum with graphite yarn packing.â HT extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C). B standard valve with cryogenic trim materials and Teflon packing to -100°F (-73°C). LT extended stuffing box valve with Teflon packing and cryogenic trim materials to -423°F (-252°C). â This packing will affect the pressure rating. Refer to Technical Information section.
