Petersen 143-2 Series T-Handle Expandable Rubber Plug, 3 1/4 in
Petersen 143-2 Series T-Handle Expandable Rubber Plug, 3 1/4 in
SKU:HIG-0bac9c
Versatile Petersen 143-2 T-Handle Rubber Plug, Neoprene material, expandable design, easy installation.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Petersen 143-2 Series T-Handle Expandable Rubber Plug, 3 1/4 in
$12.99
Quantity: 1
Claim Your Seller Account
Petersen 143-2 Series T-Handle Expandable Rubber Plug, 3 1/4 in
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen® 143-2 Series T-Handle Expandable Rubber Plug is a versatile and cost-effective solution for sealing holes or hanging products. Made with high-quality Neoprene rubber, this plug features a T-handle for easy installation without the need for tools. With a brass handle and zinc-plated steel hardware, it offers durability and reliability. The expandable design allows for a secure fit, and its lightweight construction makes it convenient for various applications. This plug is reusable, non-pressure rated, and meets institutional procurement standards for quality and performance.

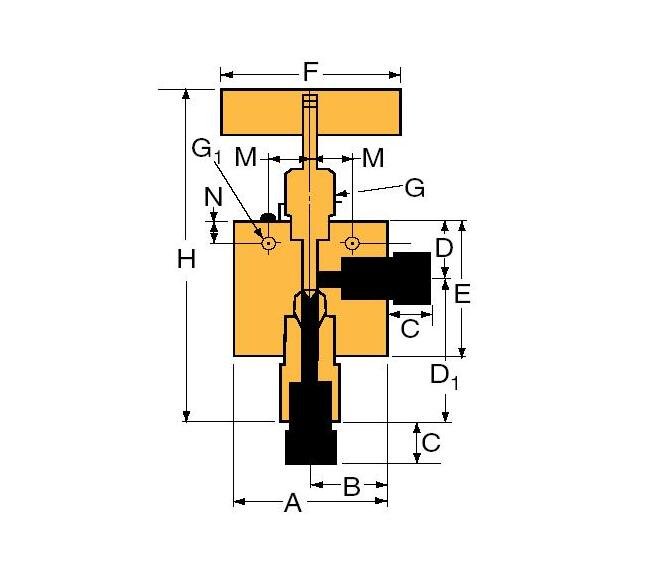

Product Specifications
Specifications A Width
2.50 in | 63.50 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.25 in | 31.75 mm
Specifications Connection Type
SF562CX10
Specifications C Length
0.53 in | 13.46 mm
Specifications D1 Height
2.50 in | 63.50 mm
Specifications D Height
1.75 in | 44.45 mm
Specifications E Height
3.38 in | 85.85 mm
Specifications F Length
4.00 in | 101.60 mm
Specifications G1 Bracket Mounting Hole Size
0.34 in | 8.64 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
7.34 in | 186.68 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.50 in | 12.70 mm
Specifications Orifice Diameter
0.359 in | 9.12 mm
Specifications Outside Diameter Tube
9/16 in | 14.29 mm
Specifications Pressure Rating At Room Temperature
10000 psi | 690 bar
Specifications Rated Cv
1.75
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.81 in | 21.0 mm
Specifications Valve Pattern
2-Way Angle / Replaceable Seat
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R20SM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.Note: Caution should be exercised in proper selection of medium pressure tubing based on actual operating conditions. Two tubing series available in some sizes: 15000 psi (1034 bar) and 20000 psi (1380 bar).
Valve Options 0
Extreme Temperatures Standard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing and/or extended stuffing box are available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number. TG standard valve with Teflon glass packing to 600°F (316°C). GY standard valve with graphite braided yarn packing to 800°F (427°C). Note: 3/4â rated 8000 psi (552 bar) and 1â rated 6000 psi (412 bar) maximum with graphite yarn packing.â HT extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C). B standard valve with cryogenic trim materials and Teflon packing to -100°F (-73°C). LT extended stuffing box valve with Teflon packing and cryogenic trim materials to -423°F (-252°C). â This packing will affect the pressure rating. Refer to Technical Information section.
