Petersen 143-2 Series T-Handle Expandable Rubber Plug - 3 3/8 Inch
Petersen 143-2 Series T-Handle Expandable Rubber Plug - 3 3/8 Inch
SKU:HIG-0397fa
Versatile Petersen® T-Handle Rubber Plug - 3 3/8 in. Lightweight, cost-effective, and easy to install. Ideal for hanging products or sealing holes.
Regular price
$9.99
Regular price
Sale price
$9.99
Unit price
per
Initiate Order
Petersen 143-2 Series T-Handle Expandable Rubber Plug - 3 3/8 Inch
$9.99
Quantity: 1
Claim Your Seller Account
Petersen 143-2 Series T-Handle Expandable Rubber Plug - 3 3/8 Inch
$9.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your project efficiency with the Petersen® 143-2 Series T-Handle Expandable Rubber Plug. Designed to fit nominal size 3 3/8 inches, this plug offers a secure Neoprene rubber seal. The T-handle ensures easy installation without the need for tools. With a brass handle and zinc-plated steel hardware, this plug is versatile for hanging products or sealing holes. Lightweight, low-cost, and reusable, this expandable plug is a reliable solution for various applications.
Ready to Grow Without Cash Flow Constraints?

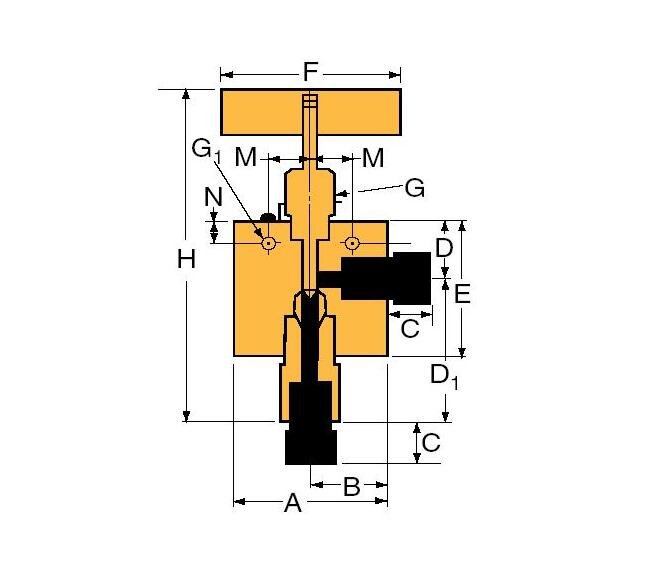

Product Specifications
Specifications A Width
2.50 in | 63.50 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.25 in | 31.75 mm
Specifications Connection Type
SF562CX10
Specifications C Length
0.53 in | 13.46 mm
Specifications D1 Height
2.50 in | 63.50 mm
Specifications D Height
1.75 in | 44.45 mm
Specifications E Height
3.38 in | 85.85 mm
Specifications F Length
4.00 in | 101.60 mm
Specifications G1 Bracket Mounting Hole Size
0.34 in | 8.64 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
7.34 in | 186.68 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.50 in | 12.70 mm
Specifications Orifice Diameter
0.359 in | 9.12 mm
Specifications Outside Diameter Tube
9/16 in | 14.29 mm
Specifications Pressure Rating At Room Temperature
10000 psi | 690 bar
Specifications Rated Cv
1.75
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.81 in | 21.0 mm
Specifications Valve Pattern
2-Way Angle / Replaceable Seat
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R20SM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.Note: Caution should be exercised in proper selection of medium pressure tubing based on actual operating conditions. Two tubing series available in some sizes: 15000 psi (1034 bar) and 20000 psi (1380 bar).
Valve Options 0
Extreme Temperatures Standard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing and/or extended stuffing box are available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number. TG standard valve with Teflon glass packing to 600°F (316°C). GY standard valve with graphite braided yarn packing to 800°F (427°C). Note: 3/4â rated 8000 psi (552 bar) and 1â rated 6000 psi (412 bar) maximum with graphite yarn packing.â HT extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C). B standard valve with cryogenic trim materials and Teflon packing to -100°F (-73°C). LT extended stuffing box valve with Teflon packing and cryogenic trim materials to -423°F (-252°C). â This packing will affect the pressure rating. Refer to Technical Information section.
