Petersen 143-5 Series 3 Inch Water Line Stub Plug
Petersen 143-5 Series 3 Inch Water Line Stub Plug
SKU:HIG-4b7c74
Reliable Petersen 3-inch Water Line Stub Plug for high-pressure applications. Durable Any Steel construction with optimal back pressure allowance.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Petersen 143-5 Series 3 Inch Water Line Stub Plug
$24.99
Quantity: 1
Claim Your Seller Account
Petersen 143-5 Series 3 Inch Water Line Stub Plug
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Petersen 143-5 Series 3 Inch Water Line Stub Plug is a reliable solution for plugging water line stub-outs in high-pressure applications. Featuring an SBR/Natural rubber o-ring, this plug is constructed from durable Any Steel material, ensuring longevity and performance. With a nominal diameter of 3 inches and maximum allowable back pressure of 28 psi, it meets stringent industry standards for quality and functionality. Sizes vary from 0.39" to 5", providing options for different pipe sizes. Whether for consumer or institutional buyers, this plug is a versatile and dependable choice for various pipe systems.

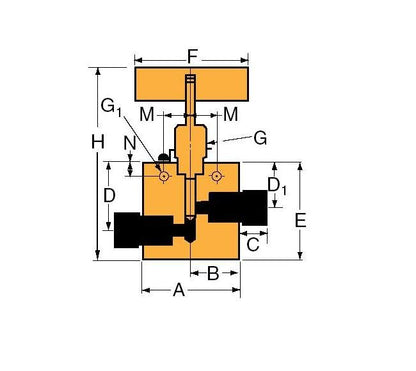

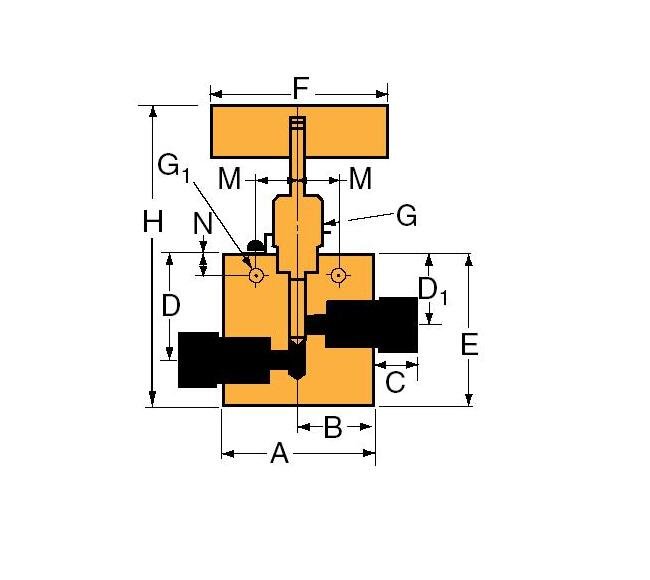

Product Specifications
Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
0.81 in | 20.57 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
QS 375
Specifications C Length
0.47 in | 11.94 mm
Specifications D1 Height
1.19 in | 30.23 mm
Specifications D Height
1.62 in | 41.15 mm
Specifications E Height
2.00 in | 50.80 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.75 in | 19.05 mm
Specifications H Height
4.63 in | 117.60 mm
Specifications M Length
0.62 in | 15.75 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.219 in | 5.56 mm
Specifications Outside Diameter Tube
3/8 in | 9.53 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 10342 bar
Specifications Rated Cv
0.75
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.69 in | 17.6 mm
Specifications Valve Pattern
2-Way Straight
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R15QS4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C).High temperature packing and/or extended stuffing box are available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.â TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 650°F (343°C).â Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.
